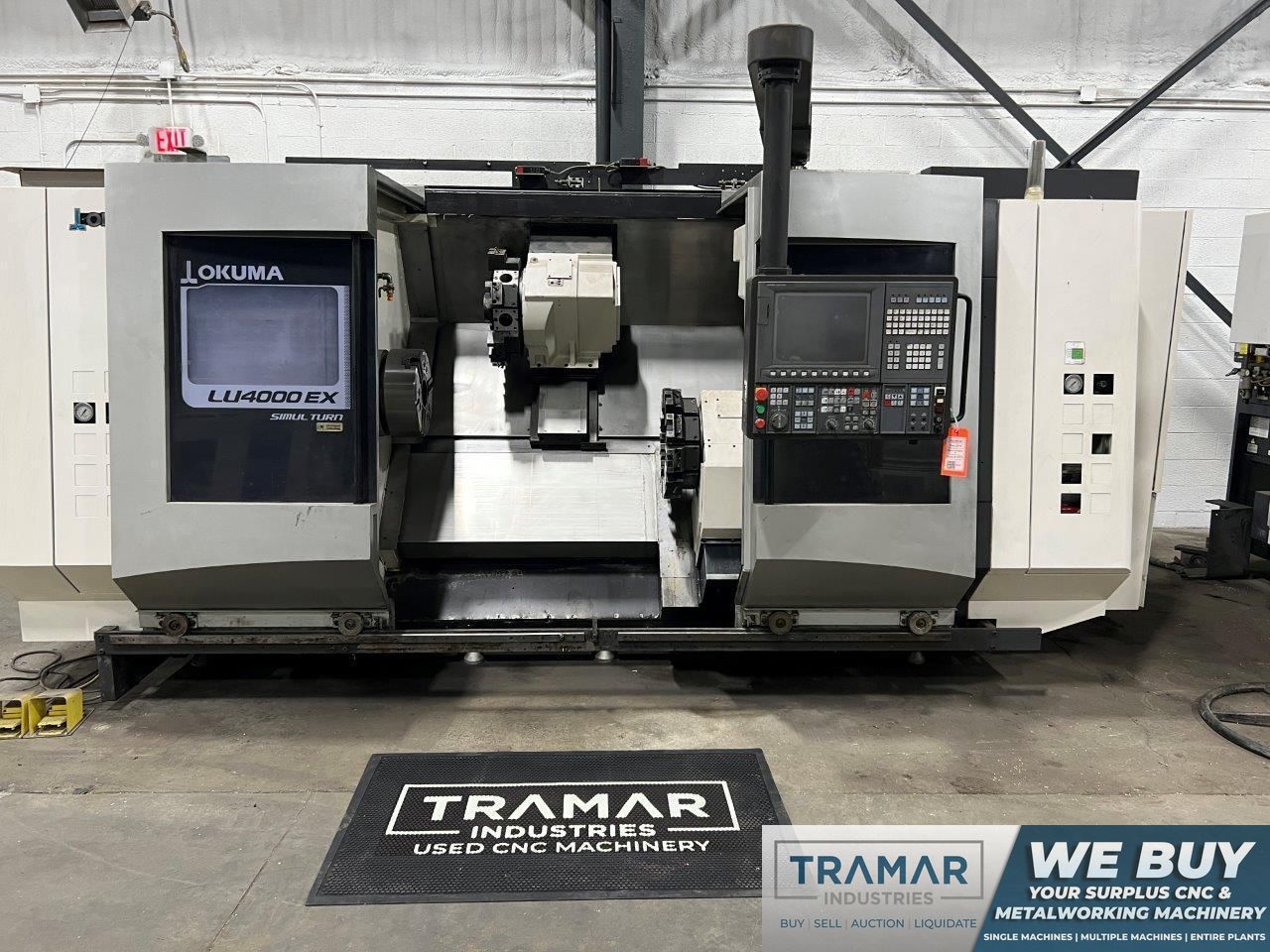

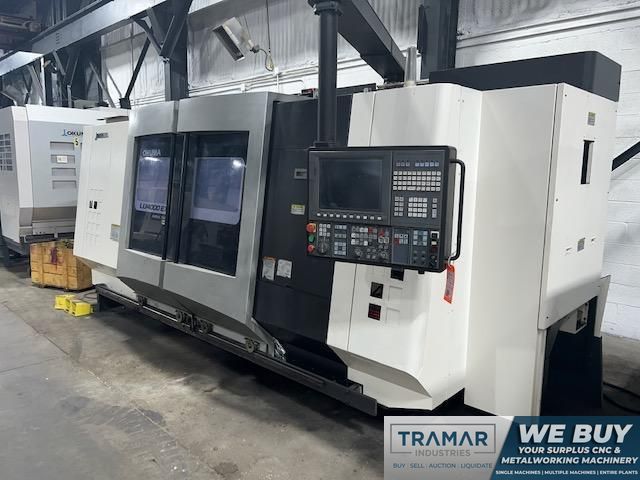

Contact UsOkuma Simulturn LU4000EXM 2SC-1250 Horizontal CNC Lathe
Make: OKUMA
Model: LU4000EX-M 2SC-1250
Specifications |
|||
|---|---|---|---|
| Year | 2014 | ||
| CNC Control | yes | ||

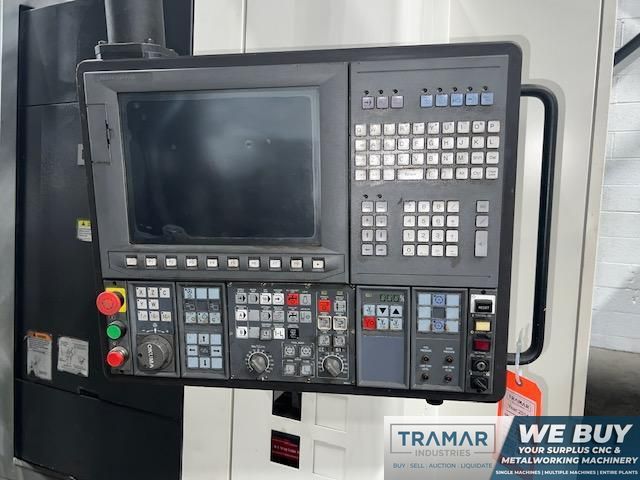

| Type of CNC Control | OSP P300L | ||
| # Axis | 5 | ||
| Swing | 27.36 inches | ||
| Turning Diameter | 18.9 inches | ||
| Center Distance | 49.21 inches | ||

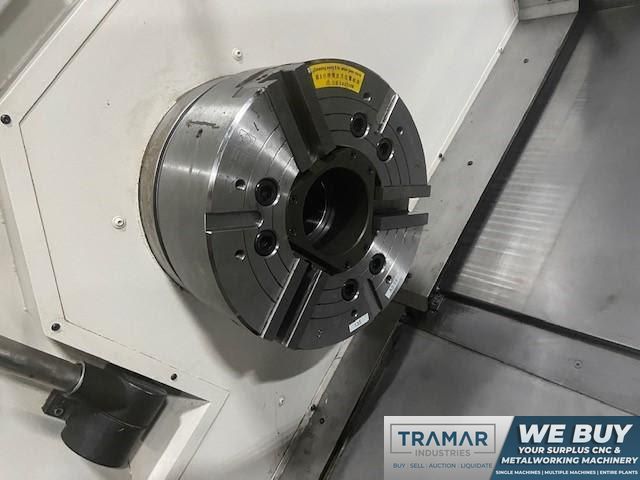

| Chuck Size | 10 inches | ||
| Bar Capacity | 3.59 inches | ||
| X Axis Travel | 11.81 inches | ||
| X-Axis Travel Lower Turret | 7.68 inches | ||
| Z Axis Travel | 57.26 inches | ||
| Z-Axis Travel Lower Turret | 51.18 inches | ||
| C Axis Index | 0.001° | ||
| Rapid Traverse (X/Z) | 984/1181 ipm | ||
| Spindle Nose | A2-8 | ||
| Spindle Speed | 4,200 rpm | ||
| Main Motor | 30 hp | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 7.5 hp | ||
| Sub Spindle | no | ||
| Tailstock | yes | ||
| Y Axis | no | ||
| Turret Capacity | 12 Upper Turret / 10 Lower Turret | ||
| Dimensions | 189" x 91" x 87" | ||
| Weight | 25300 pounds | ||
|
Equipped With
- OSP P300L Control - Touch Setter - Programmable Tailstock - 3D Animation - Exp Auto Chamfering - Synchronous Tapping - Tool Wear Compensation - Tool Offsets (96) - Turret Position Compensation - Hi-Cut Pro - Spindle Orient/M-Axis Orient - C-Axis - Auto Door - Upper & Lower Turrets - Live Tooling Upper Turret |
|||
