2014 Mazak QTN-350II MSY CNC Lathe For Sale
Make: MAZAK
Model: QTN-350II MSY
Specifications |
|||
|---|---|---|---|
| Year | 2014 | ||

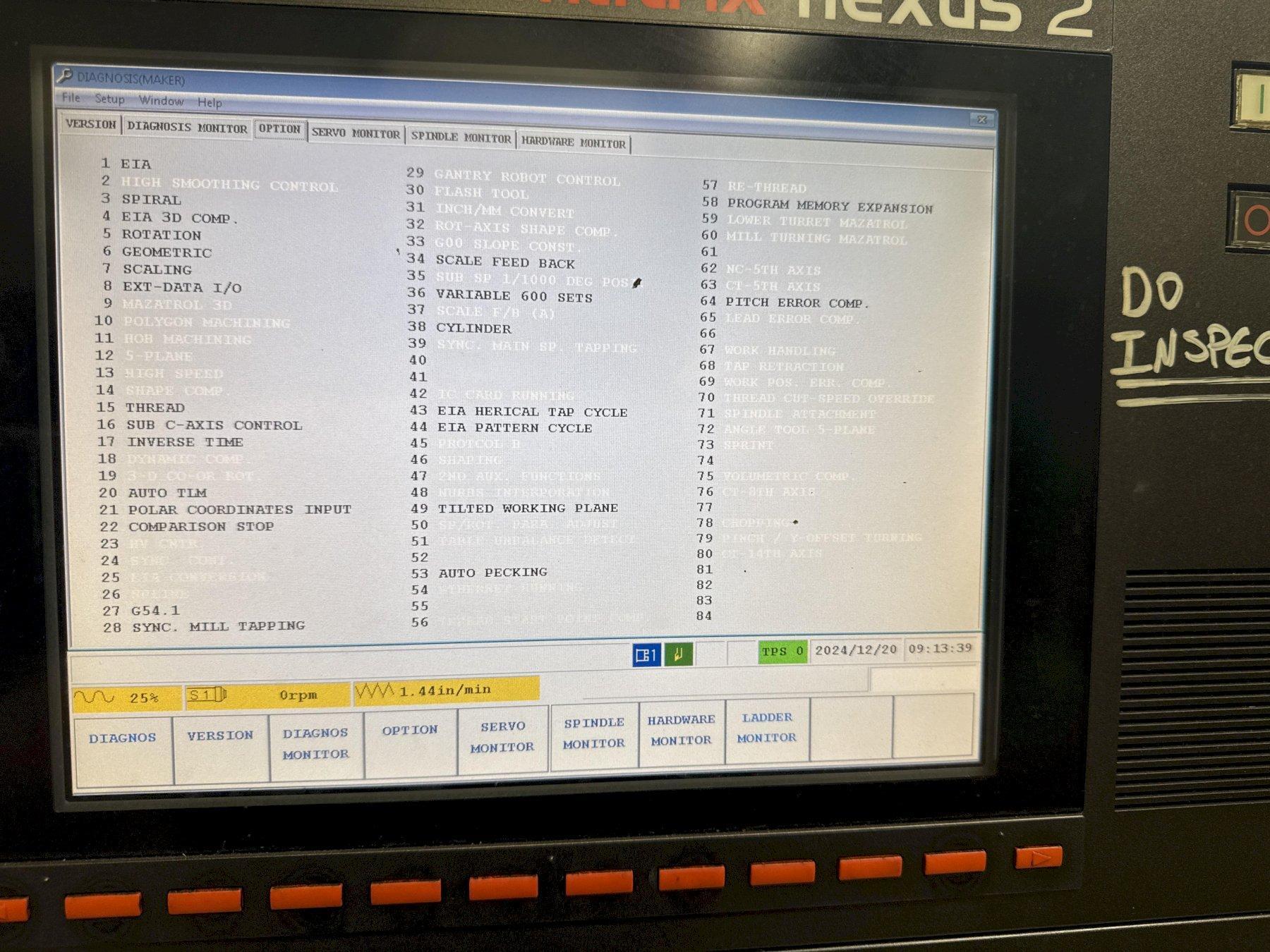

| Type of CNC Control | Mazatrol Matrix Nexus 2 | ||
| Swing | 32.68 inches | ||
| Turning Diameter | 16.6 inches | ||
| Center Distance | 62.2 inches | ||
| Chuck Size | 12 inches | ||
| Bar Capacity | 4.05 inches | ||
| X Axis Travel | 10.75 inches | ||
| Y Axis Travel | 6.90 inches | ||
| Z Axis Travel | 62.25 inches | ||
| C Axis Index | 0.001 | ||
| Spindle Speed | 3,500 rpm | ||
| Main Motor | 40 hp | ||
| Tailstock | no | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 4,000 rpm | ||
| Sub Spindle | yes | ||
| Sub Spindle Chuck | 10 inches | ||
| Sub Spindle Bar Capacity | 2.55 inches | ||
| Sub Spindle Motor (HP) | 25 | ||
| Turret Capacity | 12 | ||
|
Equipped With
- Mazatrol Matrix Nexus 2 CNC Control
- Chip Conveyor - Coolant Tank & Pump - Misc Live and Static Holders - EIA/ISO Input Function - Mazak Tapping Boring Tornado - USB Interface - Milling Spindle rigid tapping - C axis 0.0001 Deg - 213 psi High Power Coolant - Auto Tool Length Measurement - Scale Feedback |
|||
