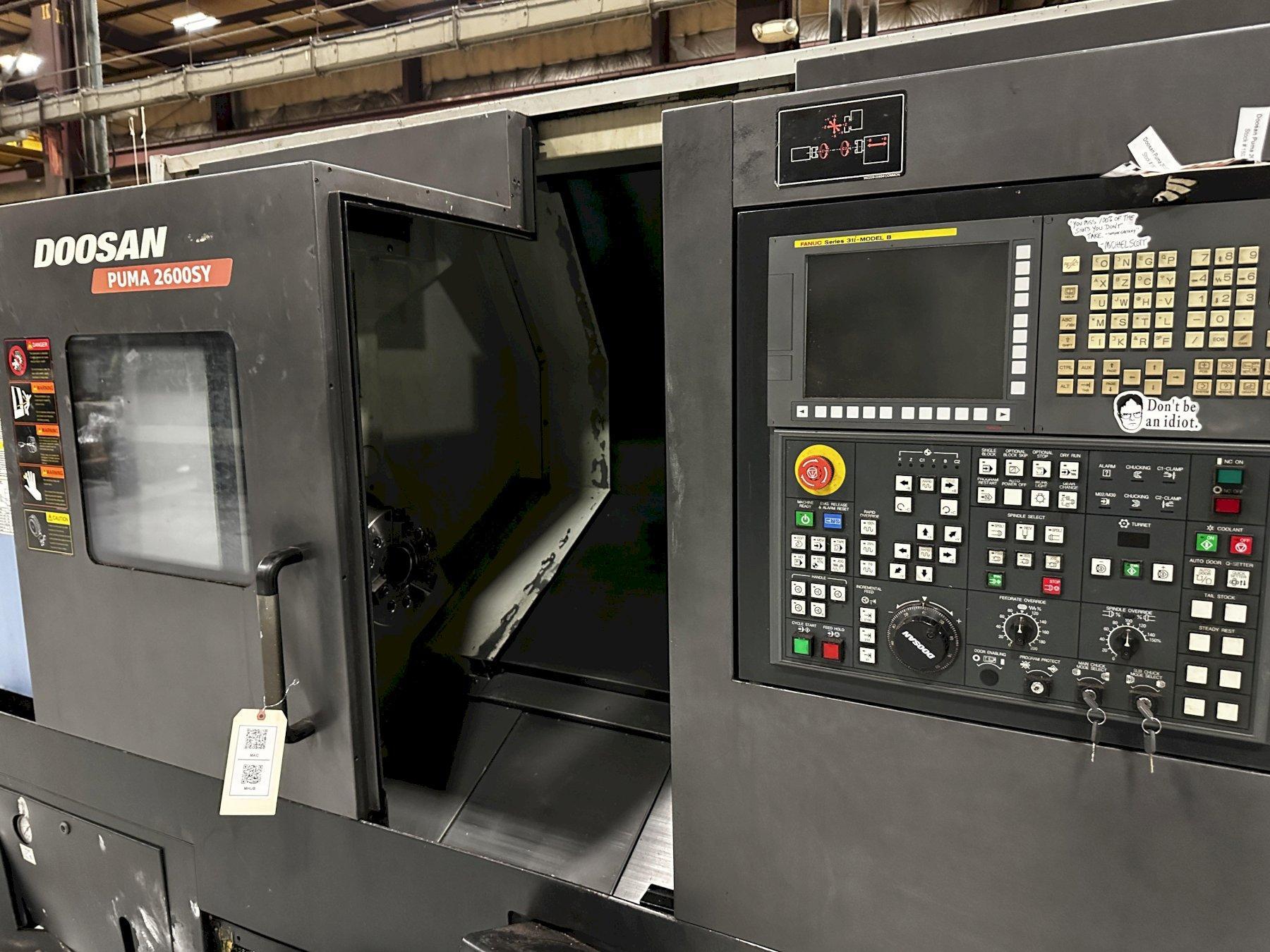

2012 Doosan Puma 2600SY CNC Lathe For Sale
Make: DOOSAN
Model: Puma 2600SY
Specifications |
|||
|---|---|---|---|
| Year | 2012 | ||
| CNC Control | yes | ||

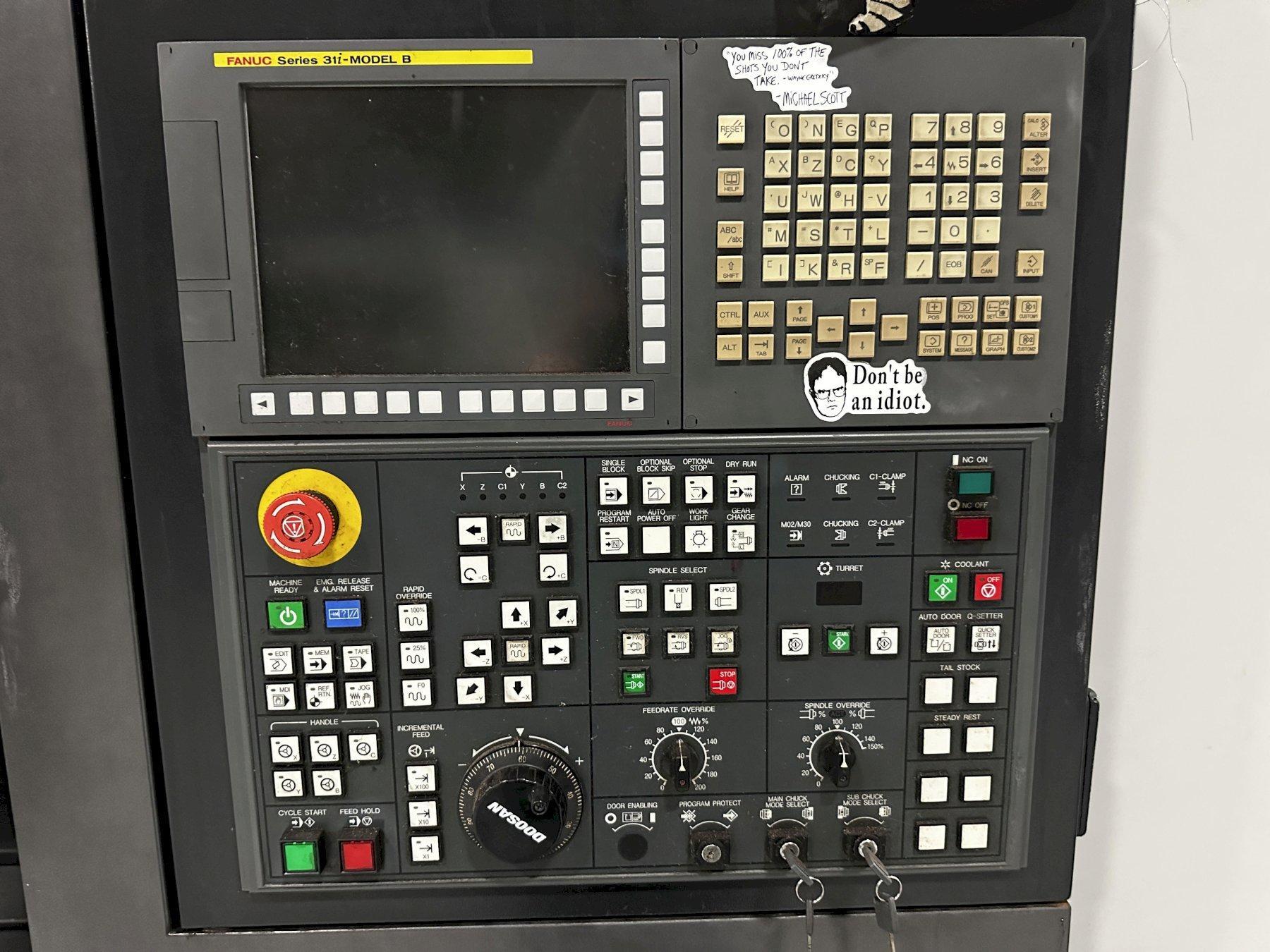

| Type of CNC Control | Fanuc 31i-Model A | ||
| # Axis | 6 | ||
| Swing | 30.7 inches | ||
| Turning Diameter | 14.8 inches | ||
| Center Distance | 29.9 inches | ||

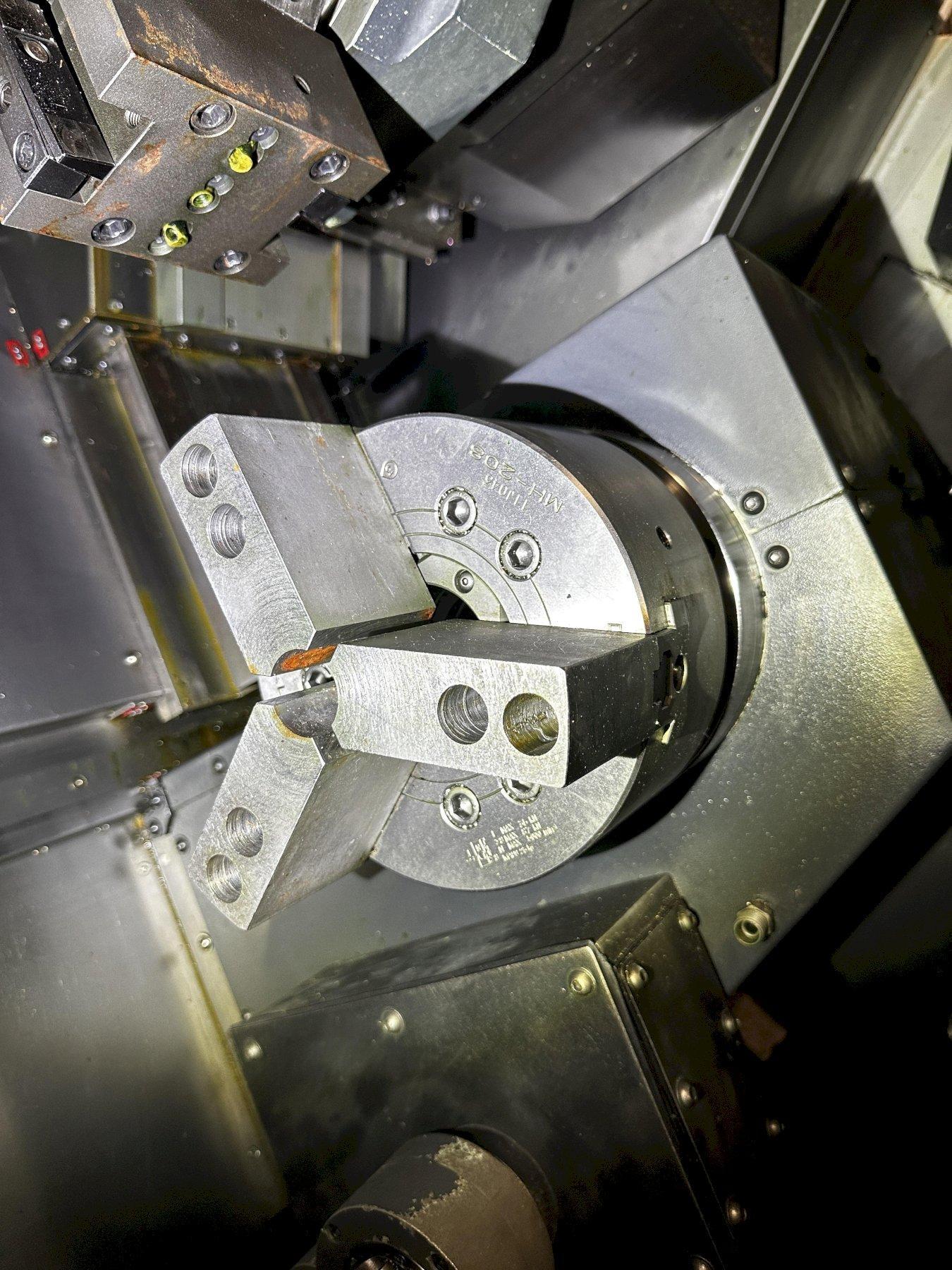

| Chuck Size | 10 inches | ||
| Bar Capacity | 3 inches | ||
| X Axis Travel | 10.2 inches | ||
| Y Axis Travel | 4.1 inches | ||
| Z Axis Travel | 32.7 inches | ||
| B Axis Travel (Sub Spindle) | 32.7 inches | ||
| C1/C2 Axis Index | 0.001° | ||
| Rapid Traverse (X/Y/Z) | 1181/394/1181 ipm | ||
| Spindle Nose | A2-11 | ||
| Spindle Speed | 2,800 rpm | ||
| Main Motor | 30 hp | ||
| Tailstock | no | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 5,000 rpm | ||
| Live Tooling Motor | 7 hp | ||

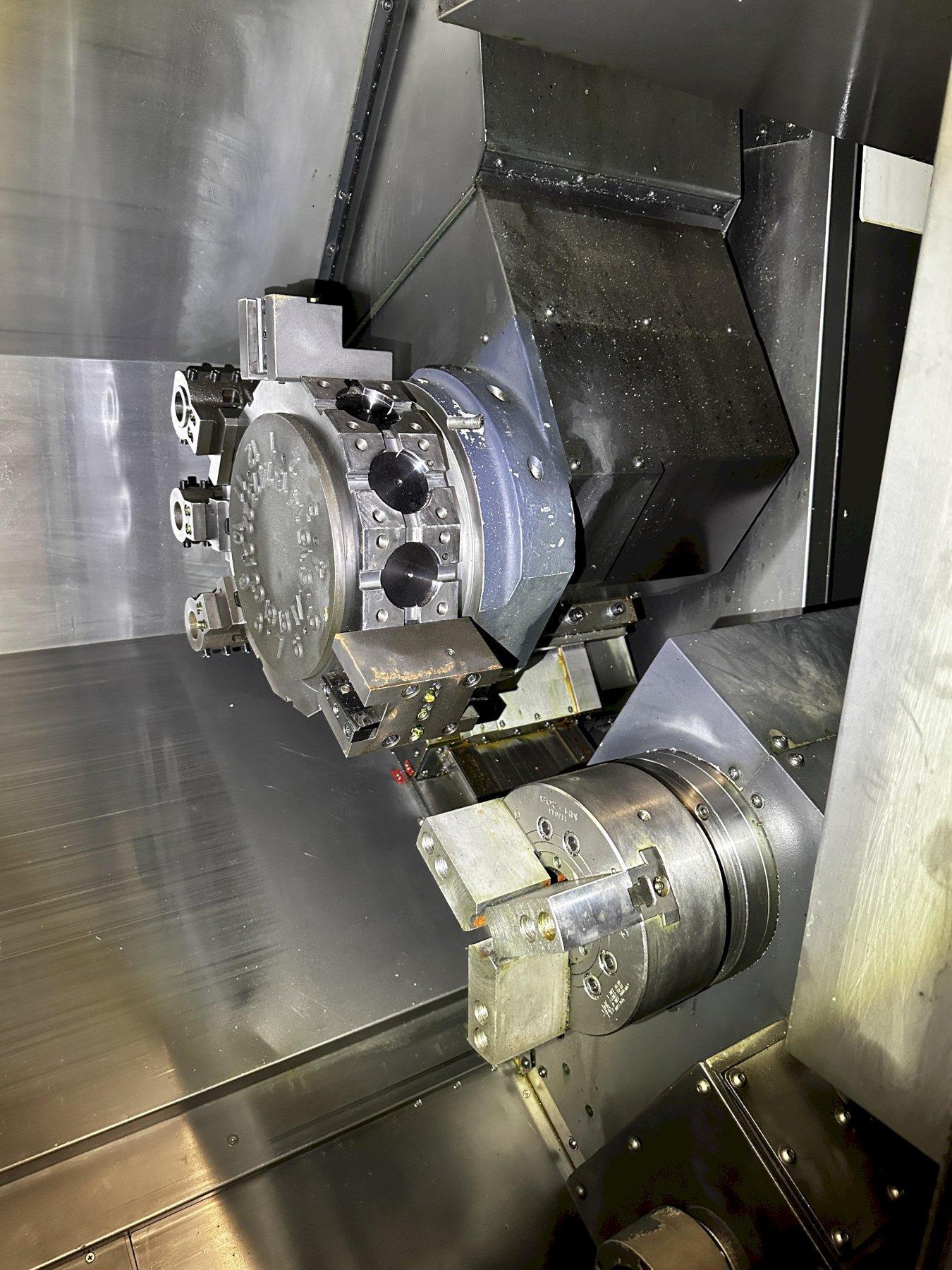

| Sub Spindle | yes | ||

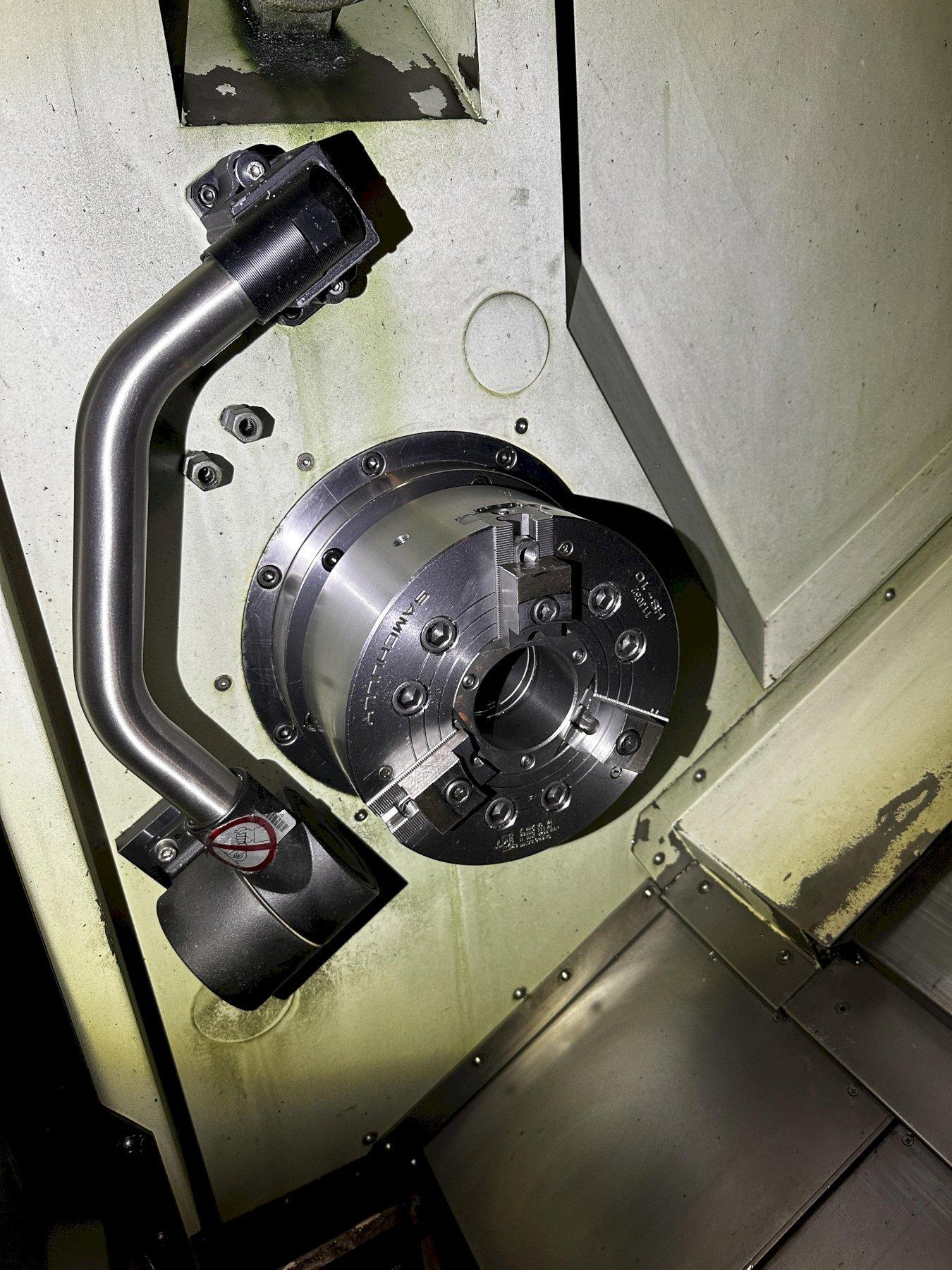

| Sub Spindle Chuck | 8 inches | ||
| Sub Spindle Bar Capacity | 2.4 inches | ||
| Sub Spindle Nose | A2-5 | ||
| Sub Spindle Speed | 4,500 rpm | ||
| Sub Spindle Motor (HP) | 10 hp | ||

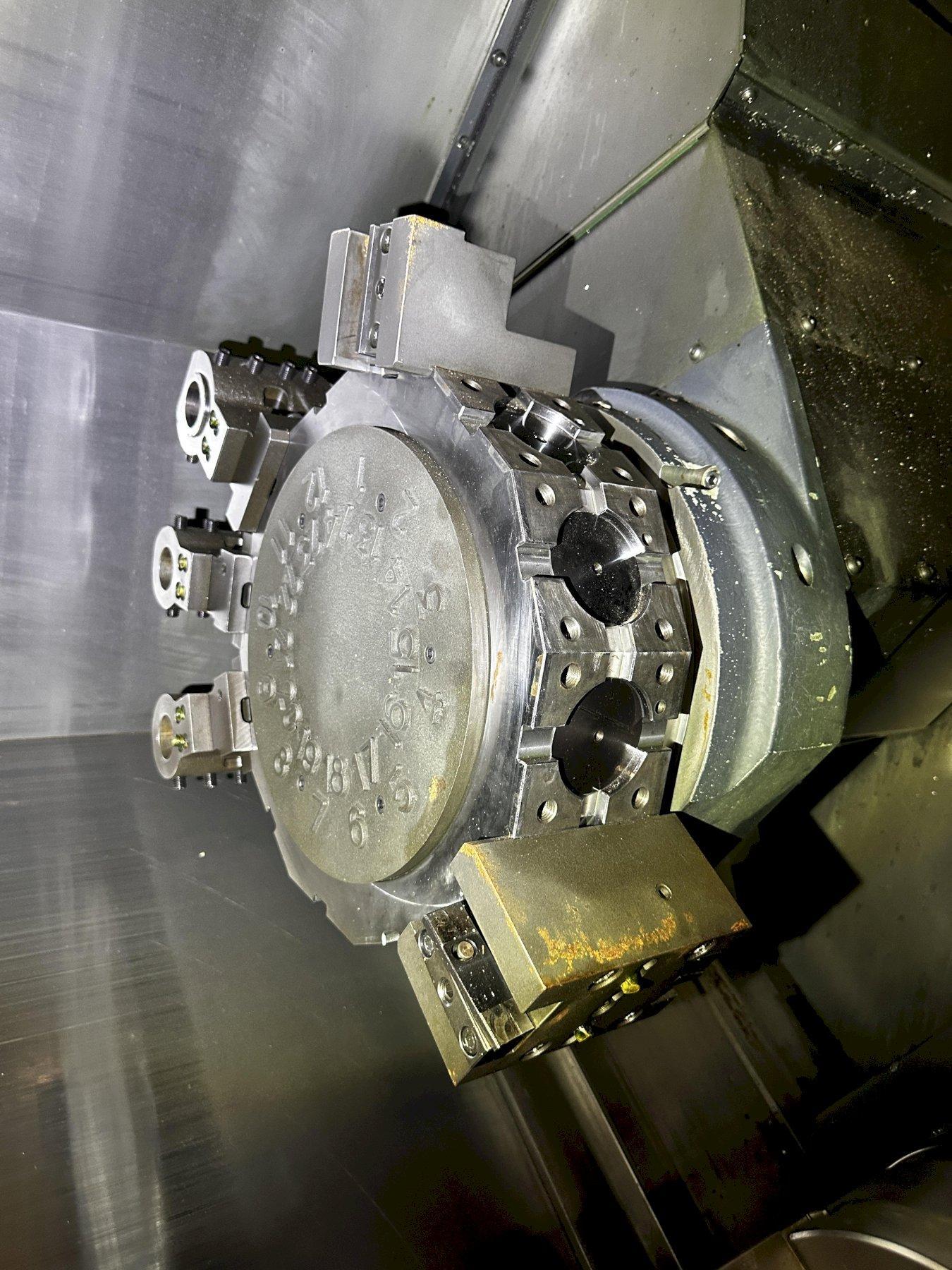

| Turret Capacity | 24 | ||
| Machine Dimensions | 145" x 74" x 86" | ||
| Machine Weight | 16500 pounds | ||
|
Equipped With
- Fanuc 31i-Model A CNC Control - Chip Conveyor - Coolant Tank & Pump - Parts Catcher - Tool Presetter - Auto Tool Length Measurement - Live Tooling - Sub Spindle - Y Axis - Manual Guide i - Embedded Ethernet - Rigid Tapping - Custom Macro B - Tool Geometry/Wear Offset - Graphic Function - AI Contour Control I |
|||
