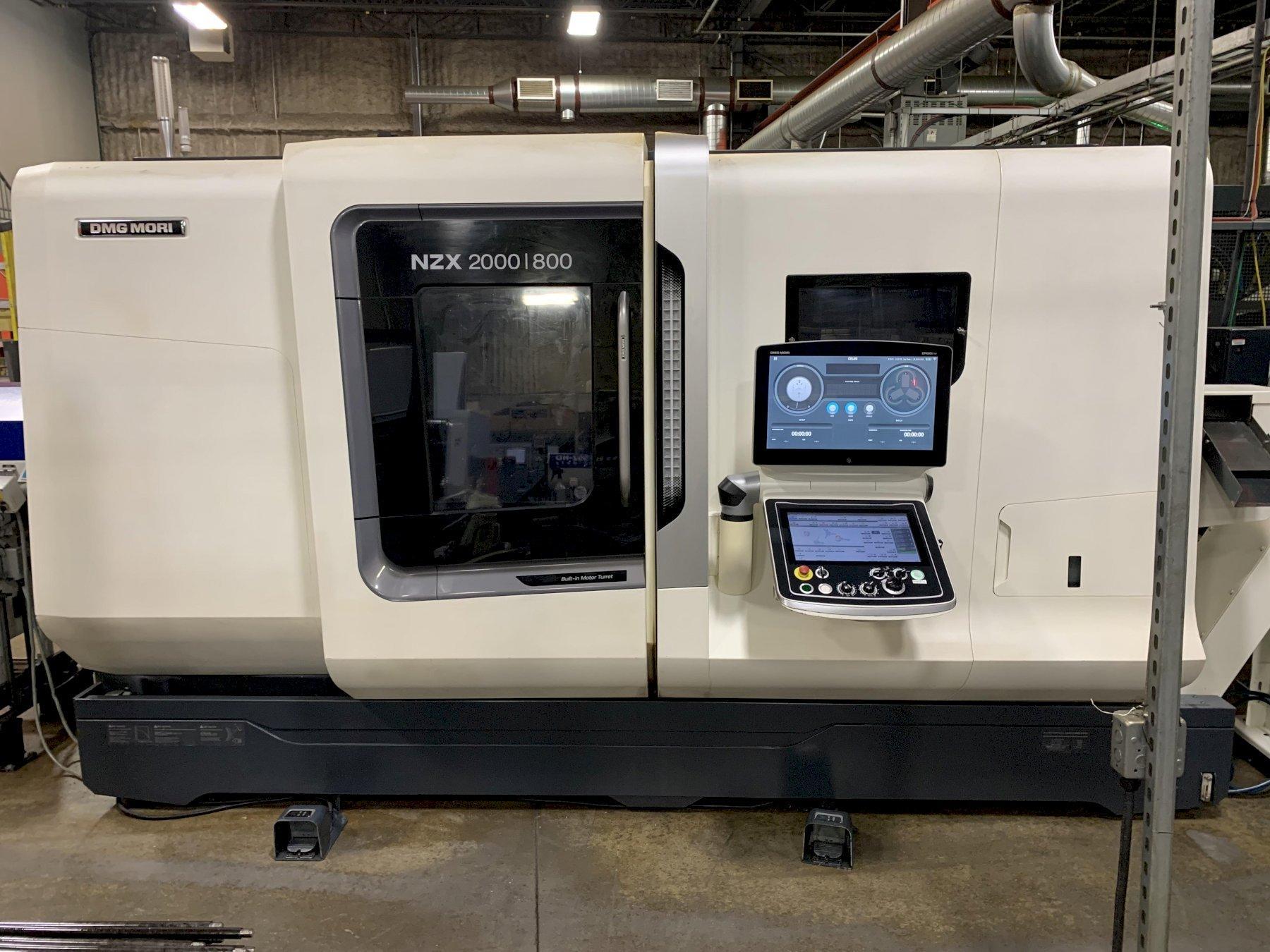

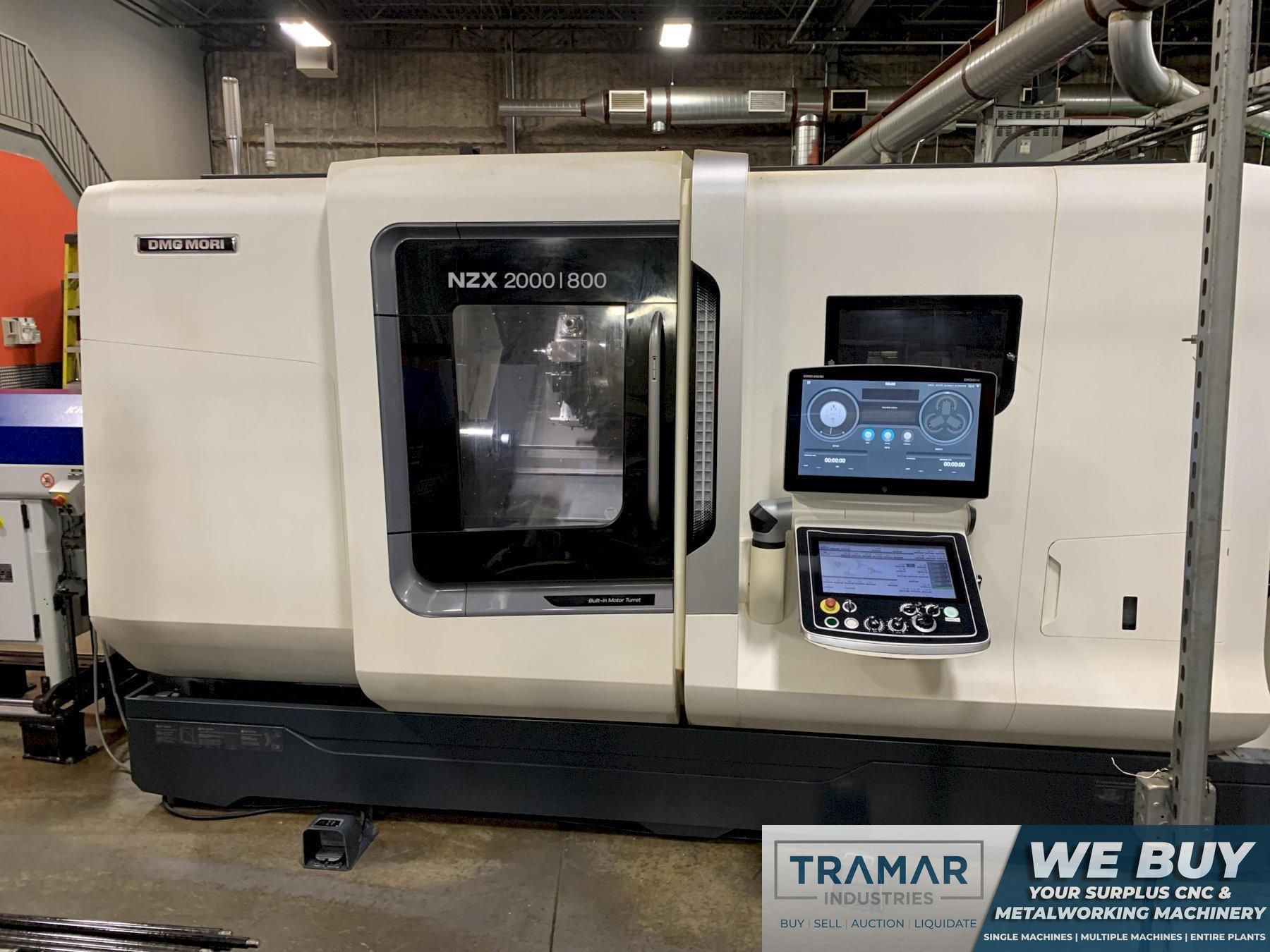

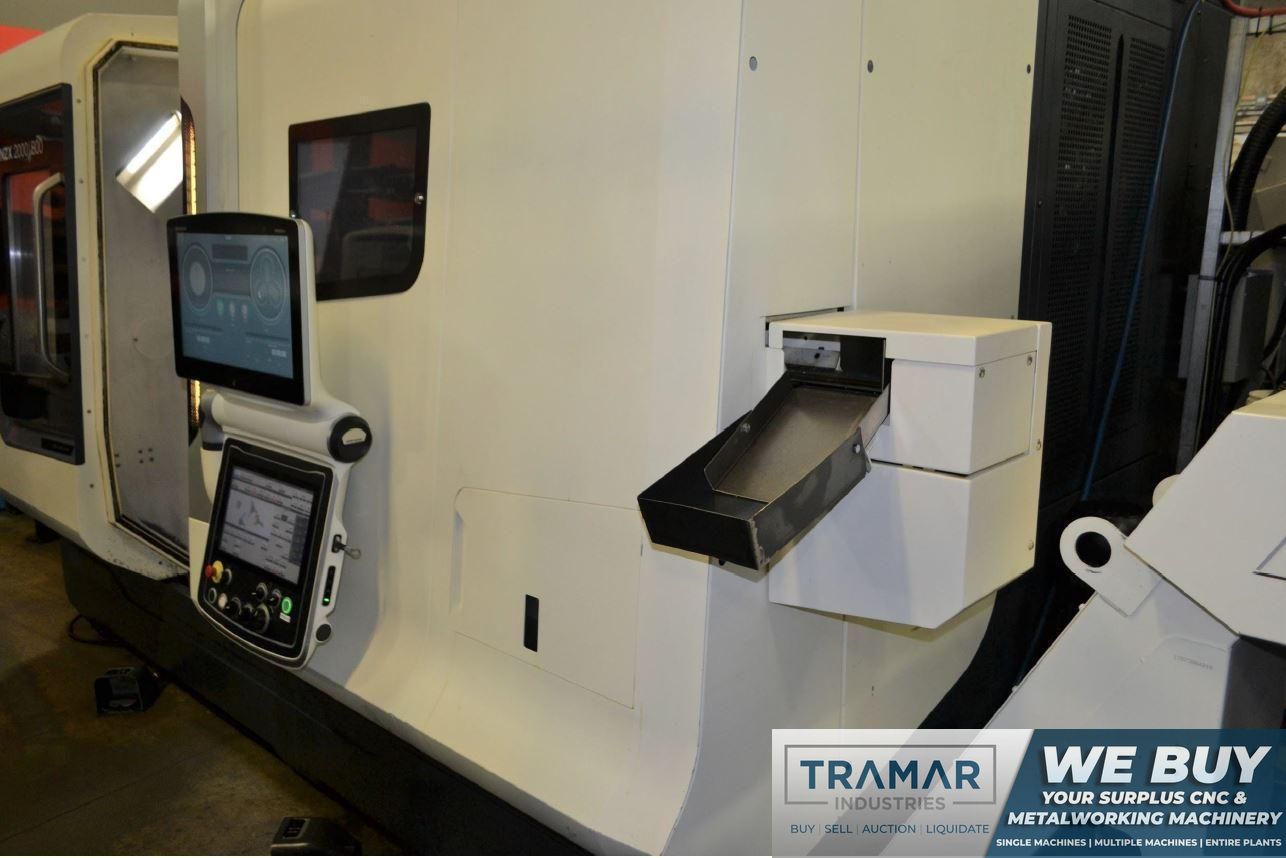

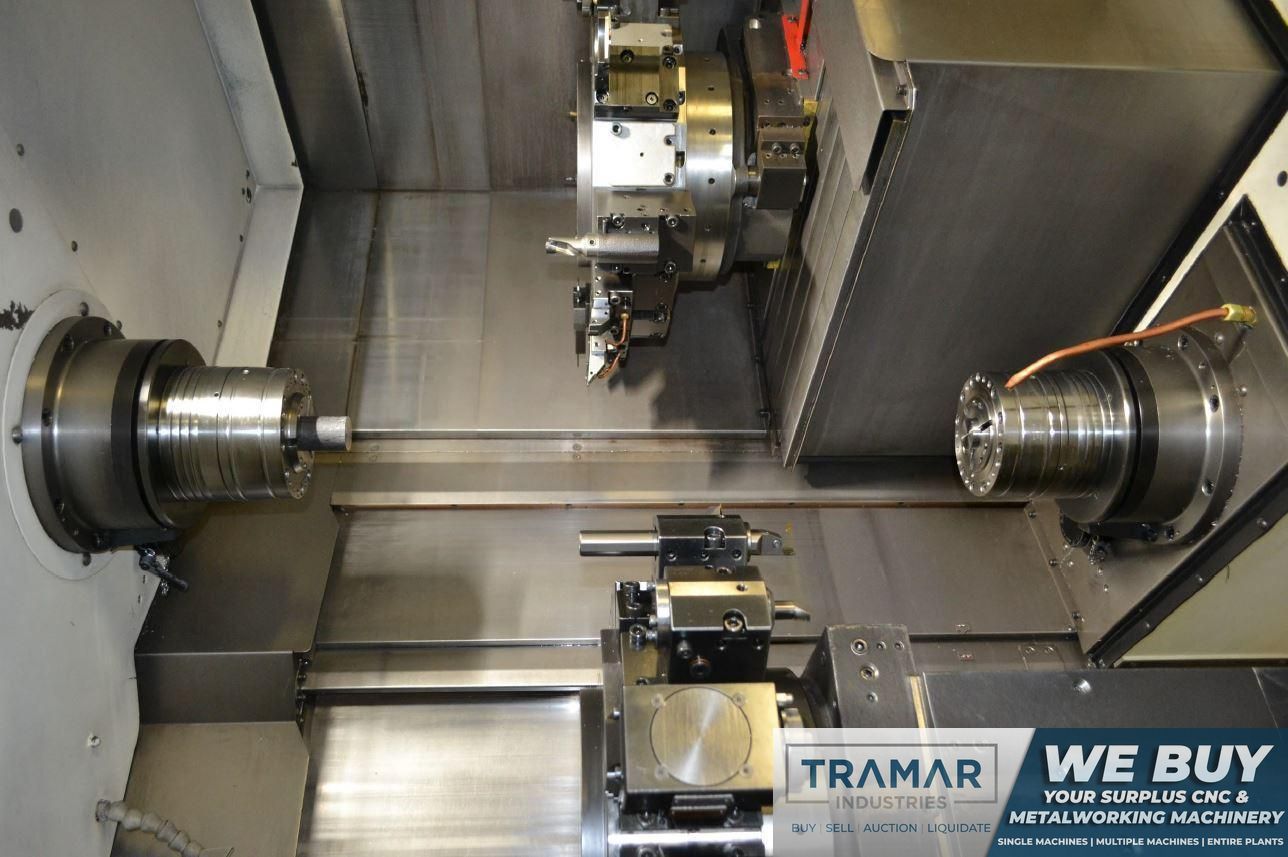

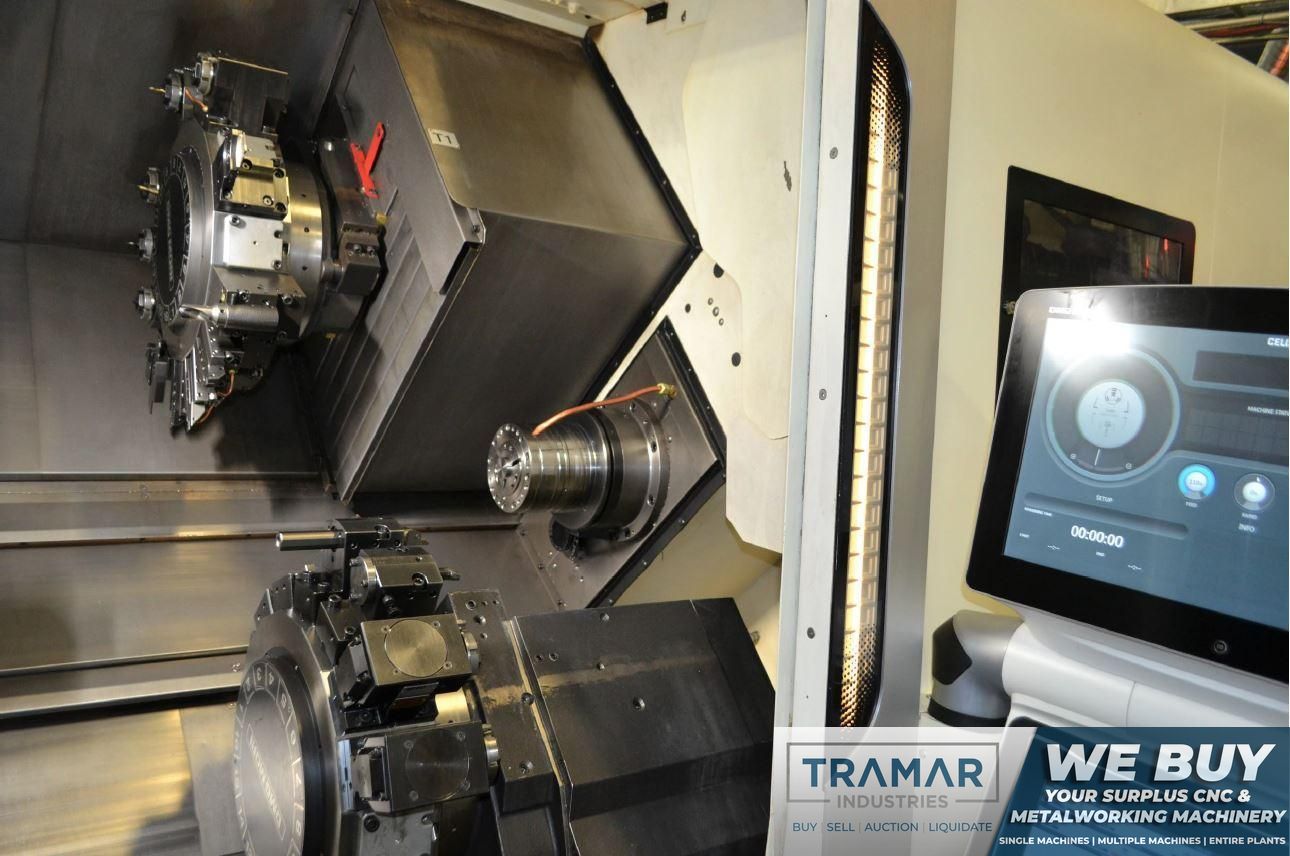

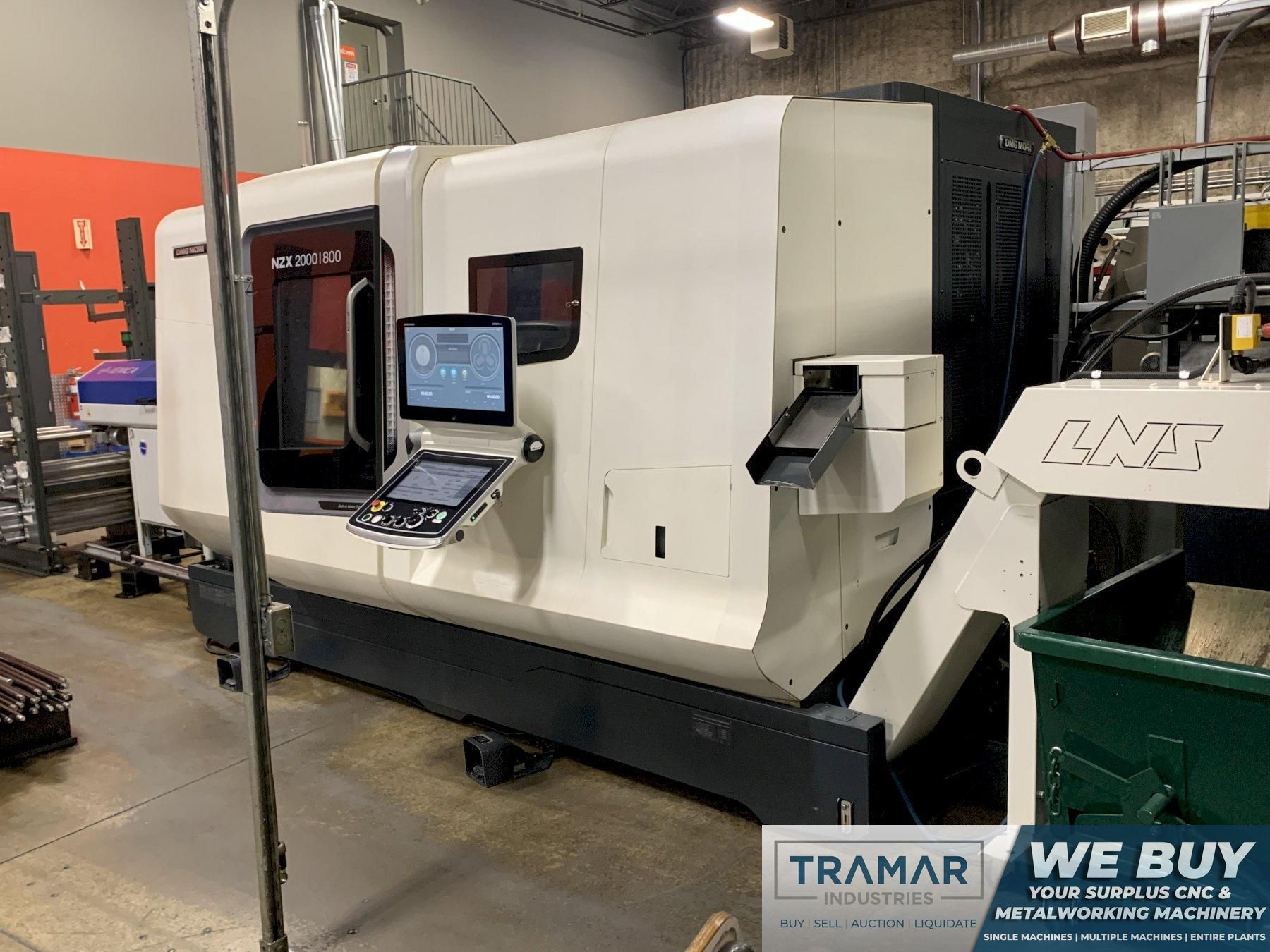

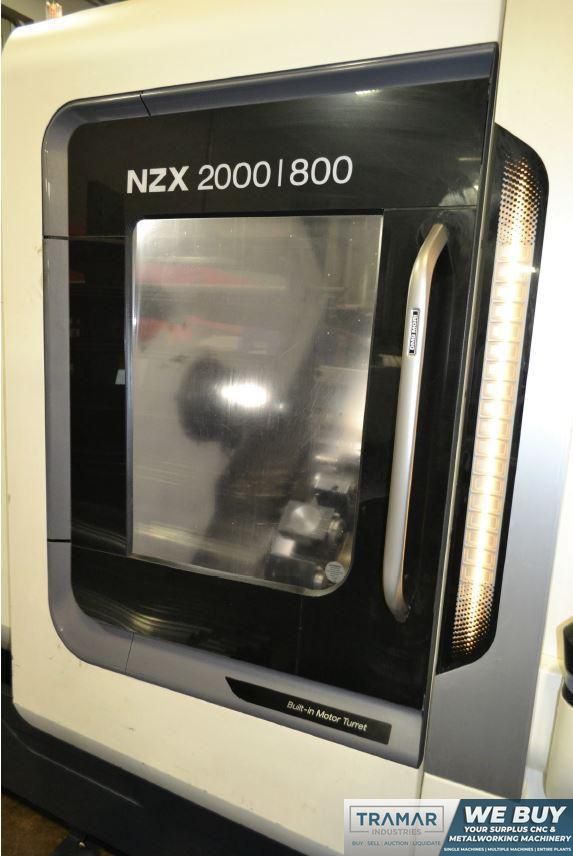

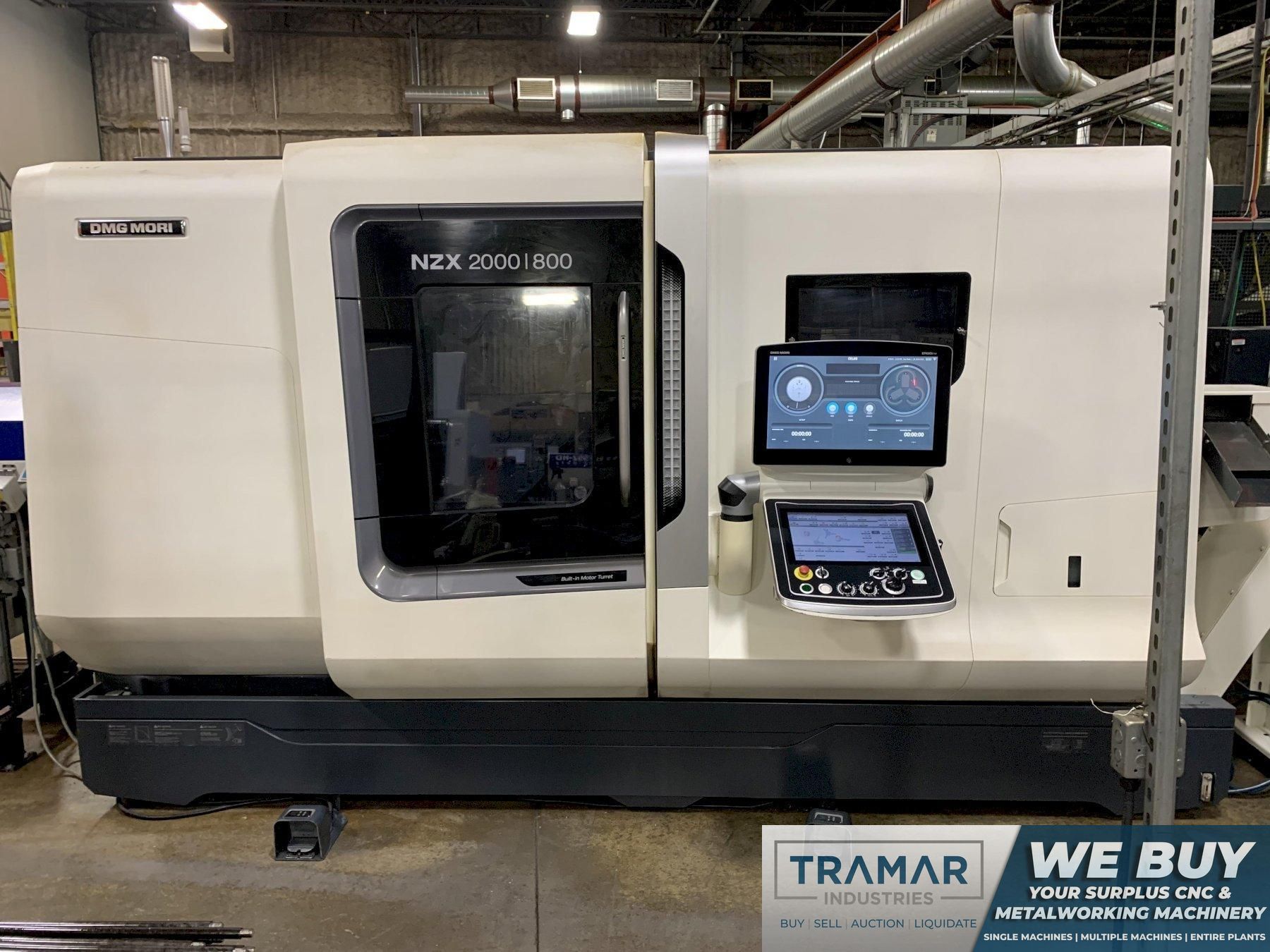

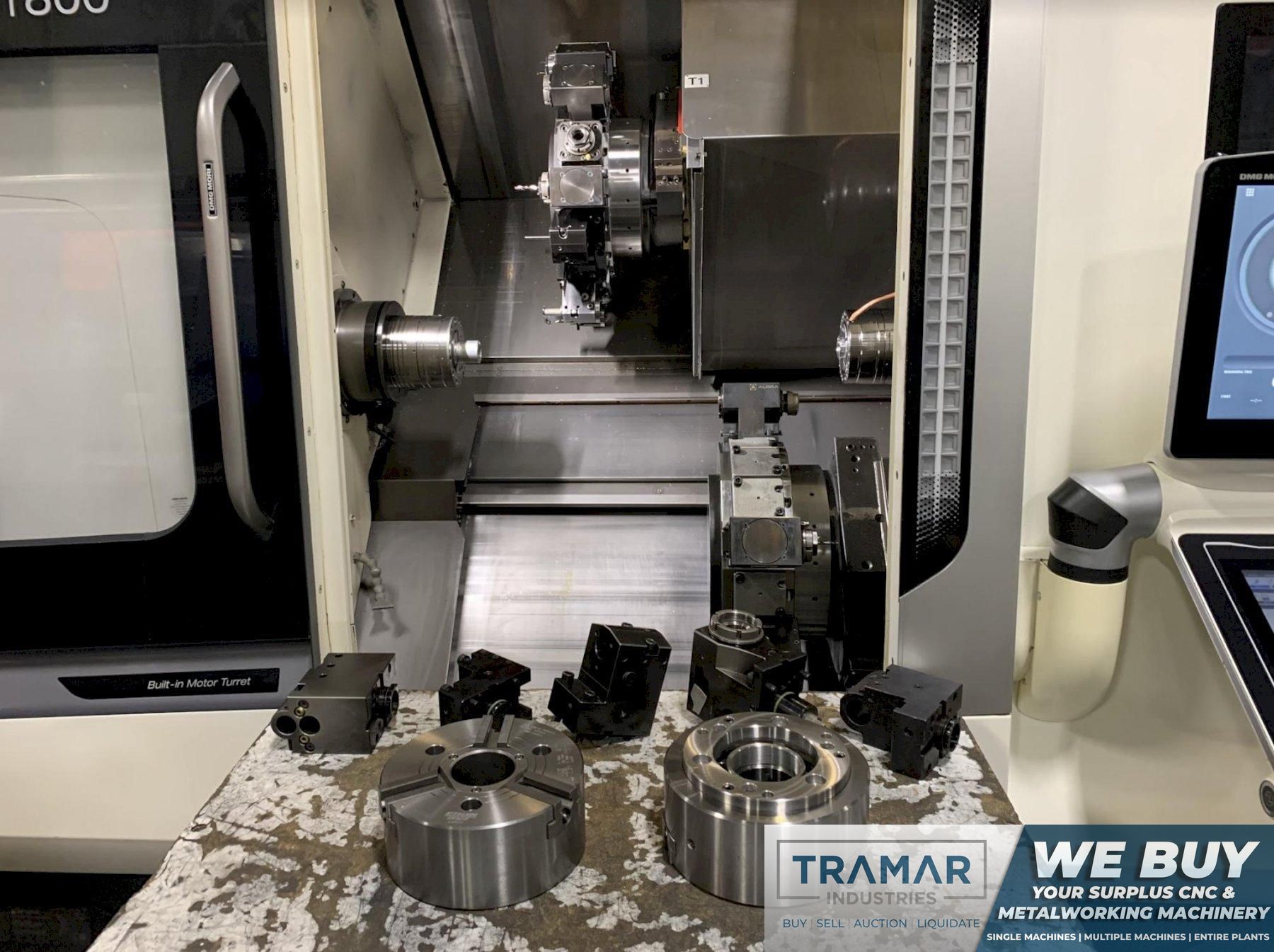

Contact UsDMG Mori NZX2000/800SY CNC Horizontal Lathe For Sale 2015
Make: DMG MORI
Model: NZX2000/800SY
Specifications |
|||
|---|---|---|---|
| Year | 2015 | ||
| CNC Control | yes | ||

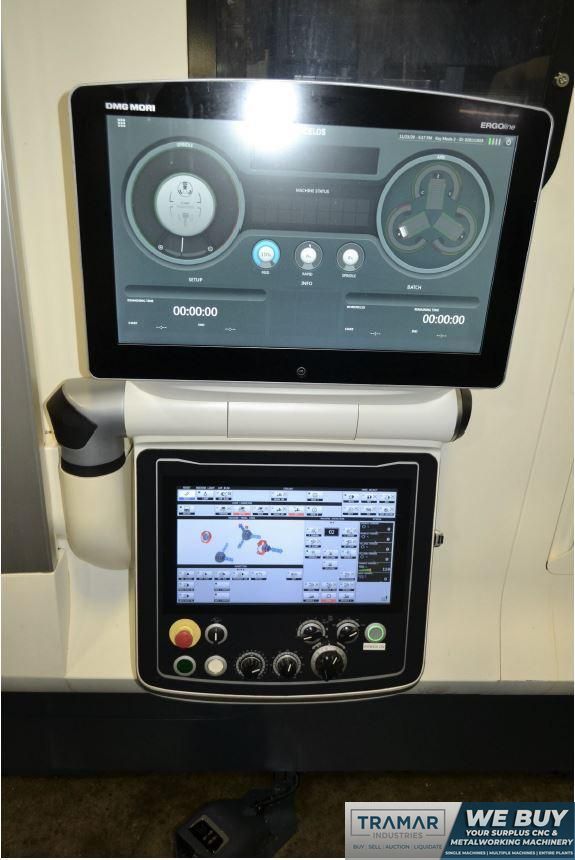

| Type of CNC Control | Fanuc 31iB | ||
| # Axis | 8 | ||
| Chuck Size | 8 inches | ||
| Swing | 31.5 inches | ||
| Turning Diameter | 12.5 inches | ||
| Center Distance | 34.2 inches | ||
| Bar Capacity | 2.5 inches | ||
| X Axis Travel | 8.2 inches | ||
| X2 Travel | 8.2 inches | ||
| Y-Axis Travel | 4.3" (+2.5" to -1.7") | ||
| Z Axis Travel | 11.8 inches | ||
| Z2 Travel | 31.8 inches | ||
| B Axis Travel (Sub Spindle) | 34.2 inches | ||
| C1/C2 Axis Index | 0.001° | ||
| Y Axis | yes | ||
| Spindle Nose | A2-8 | ||
| Main Motor | 34 hp (High Torque Option) | ||
| Sub Spindle | yes | ||
| Sub Spindle Chuck Size | 8 inches | ||
| Sub Spindle Nose | A2-6 | ||
| Sub Spindle Motor | 34 hp (High Torque Option) | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 12,000 rpm | ||
| Live Tooling Motor | 10 hp | ||
| Turret Capacity | 16/16 | ||
| Tailstock (Yes/No) | no | ||
| Dimensions | 173" x 112" x 92" | ||
| Weight | 18500 pounds | ||
|
Equipped With
- Machine Installed 7/2016

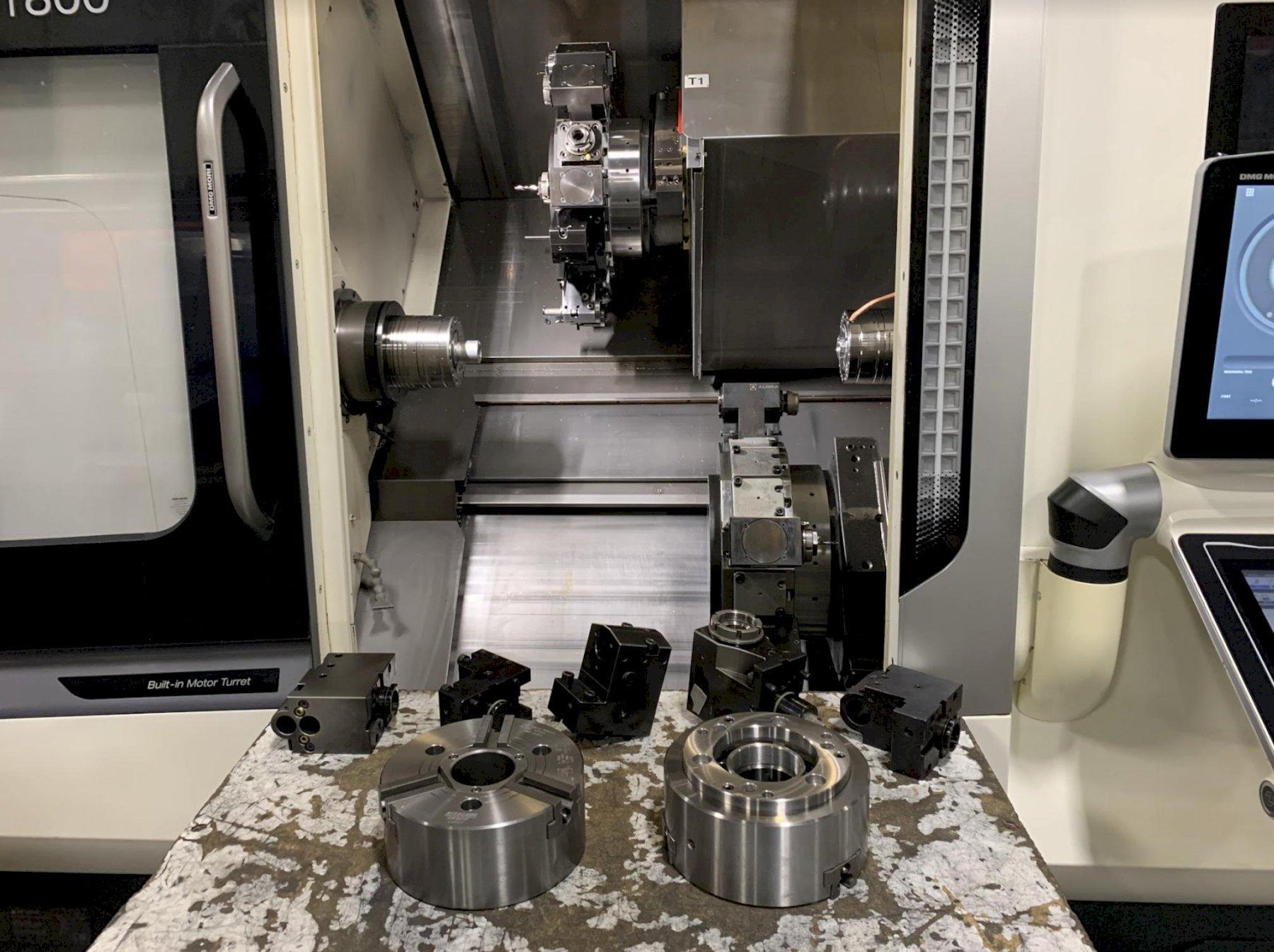

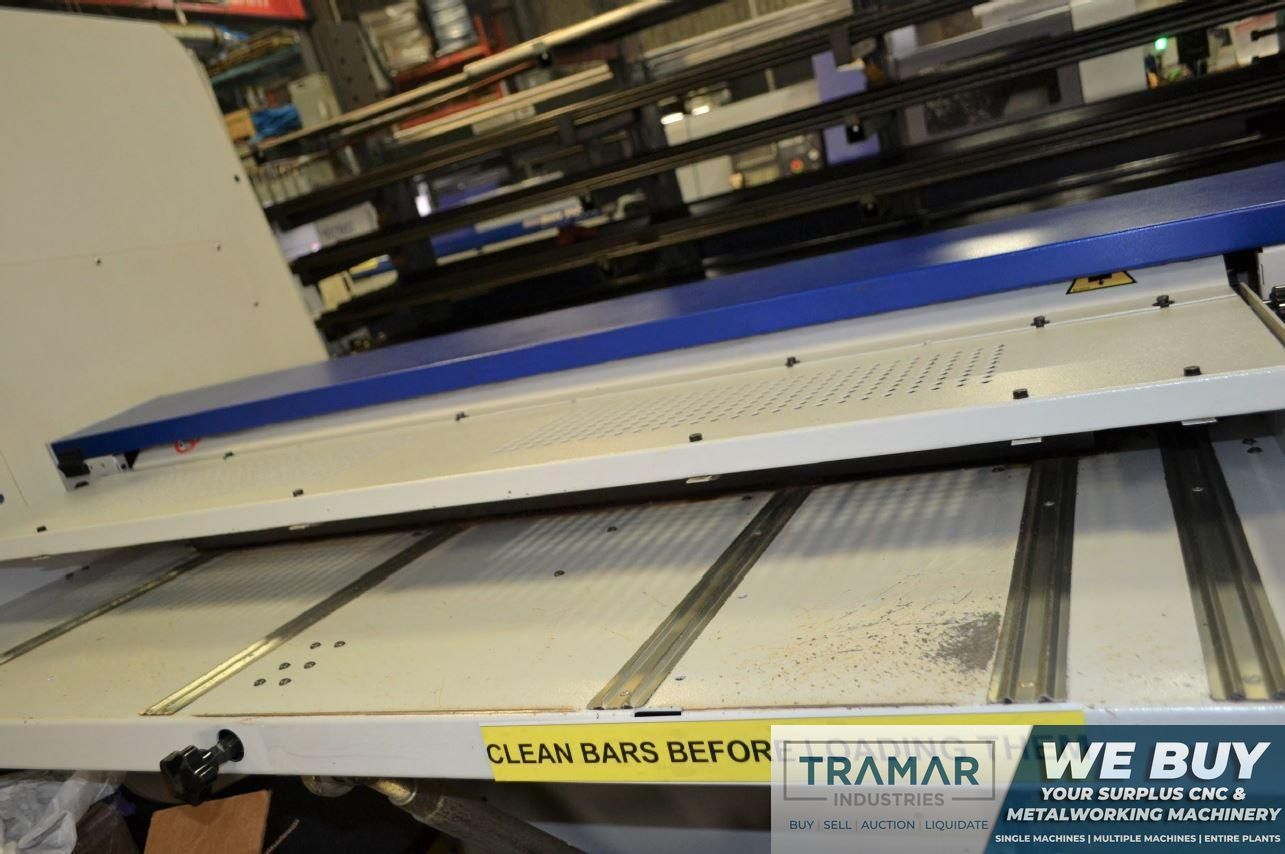

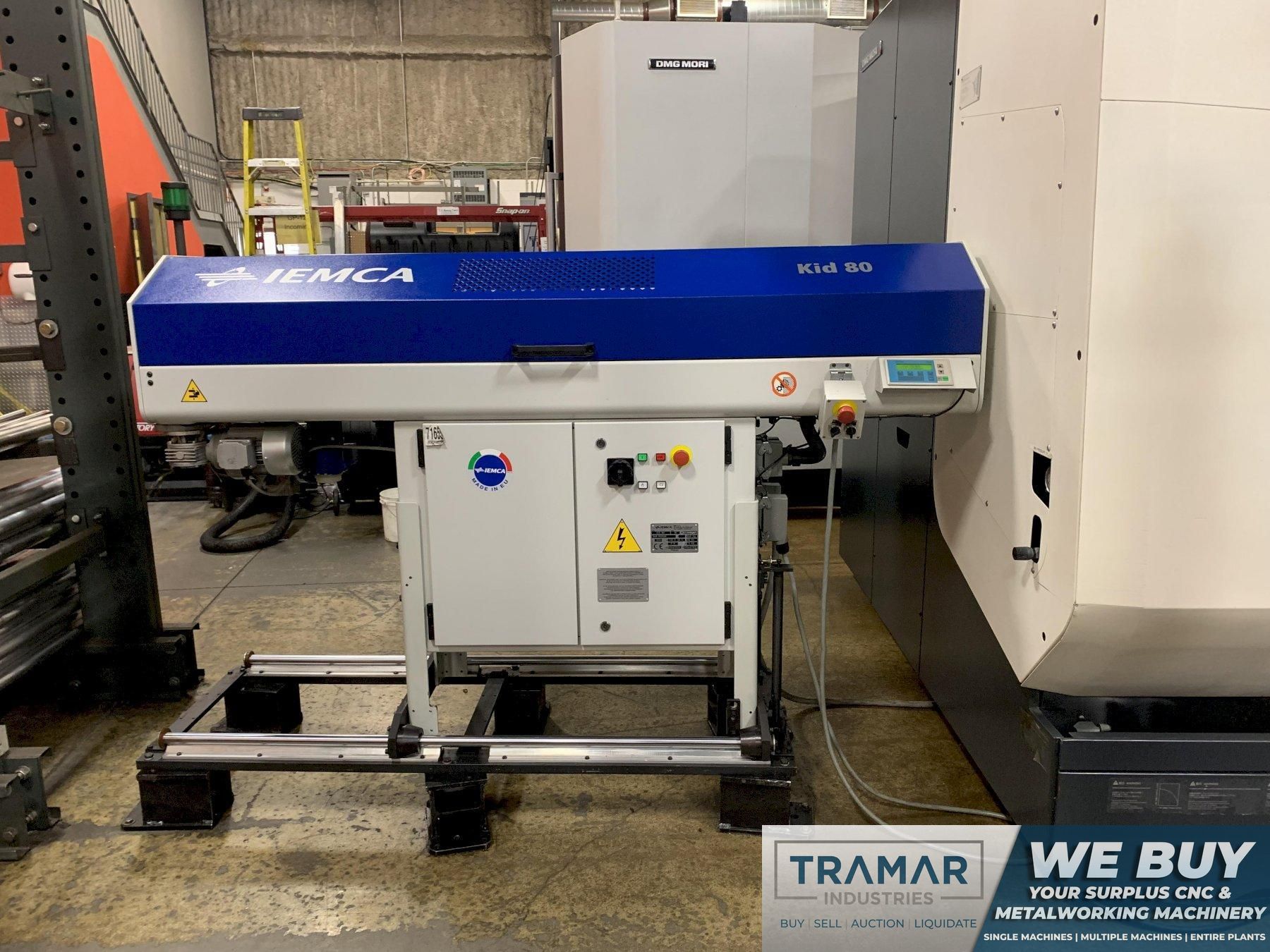

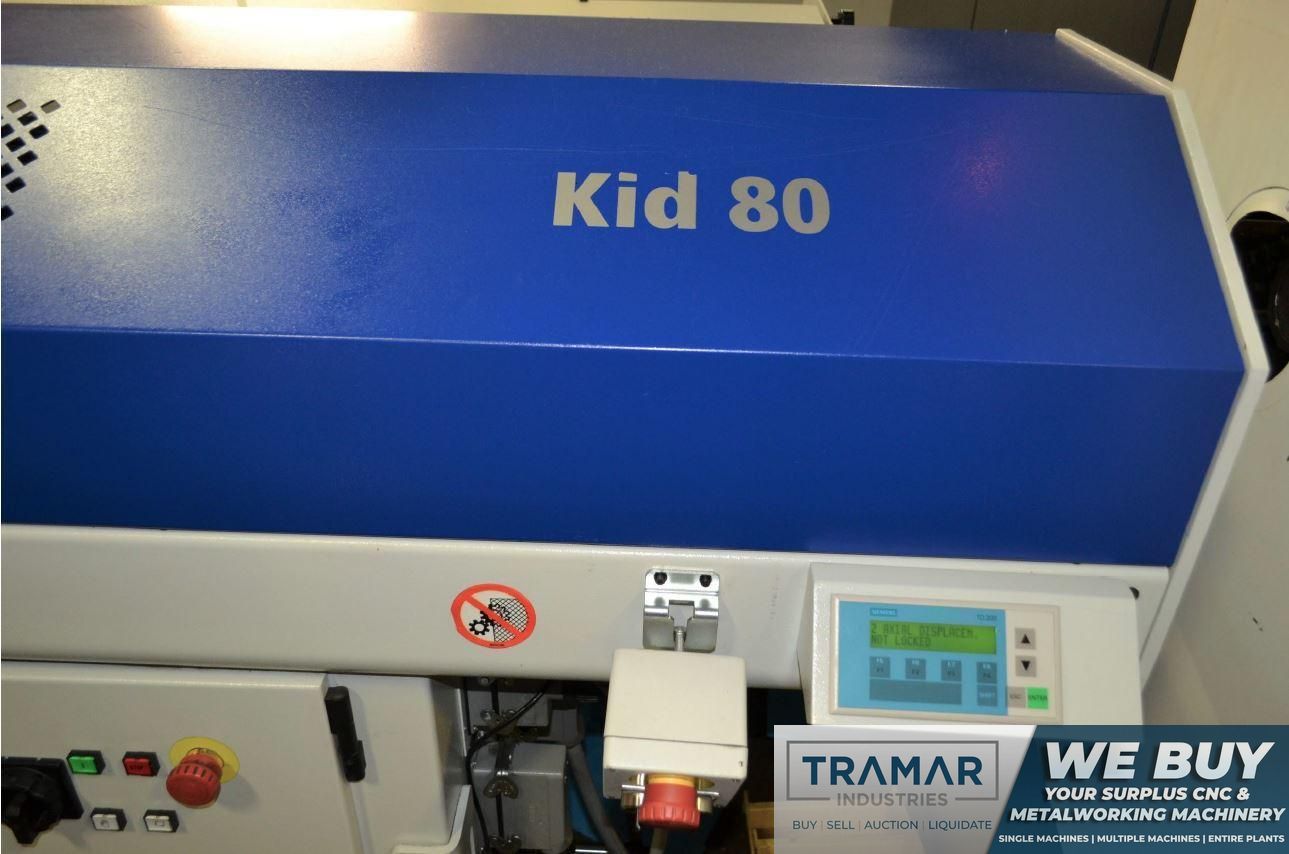

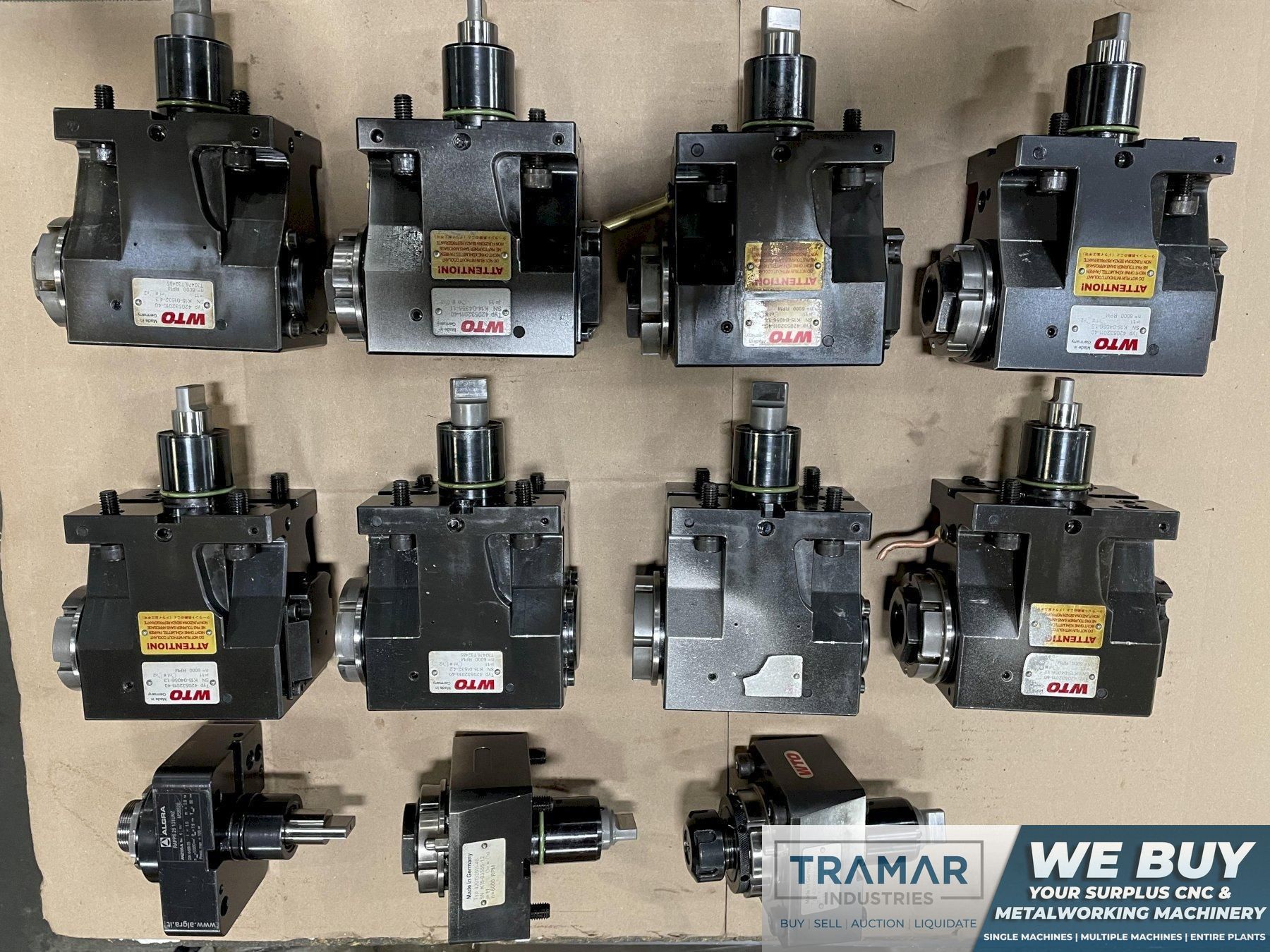

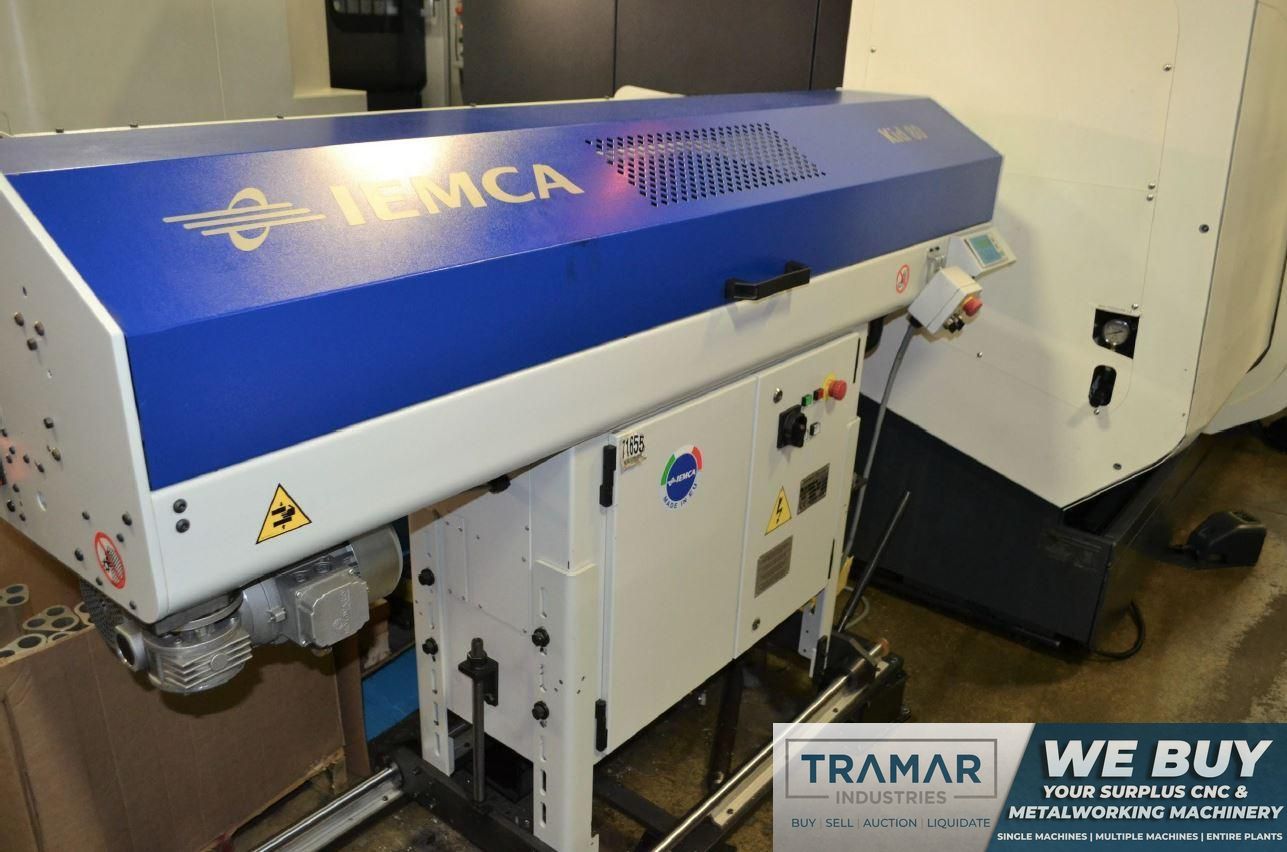

- Fanuc 31i-B Control - IEMCA KID 80 Bar Feeder - High Pressure Coolant System 300 psi x2 - Flushing of Chucks & Way Covers - Hinge Type Chip Conveyor - Hobbing Software Option on Main Spindle - Misc. Tooling Available - Renishaw Tool Probes - High Torque Spindle Option - Kitagawa BB208 3-Jaw Hydraulic Chucks (Main & Sub) - Hainbuch Spanntop Nova 65 Collet Chucks (Main & Sub) |
|||
