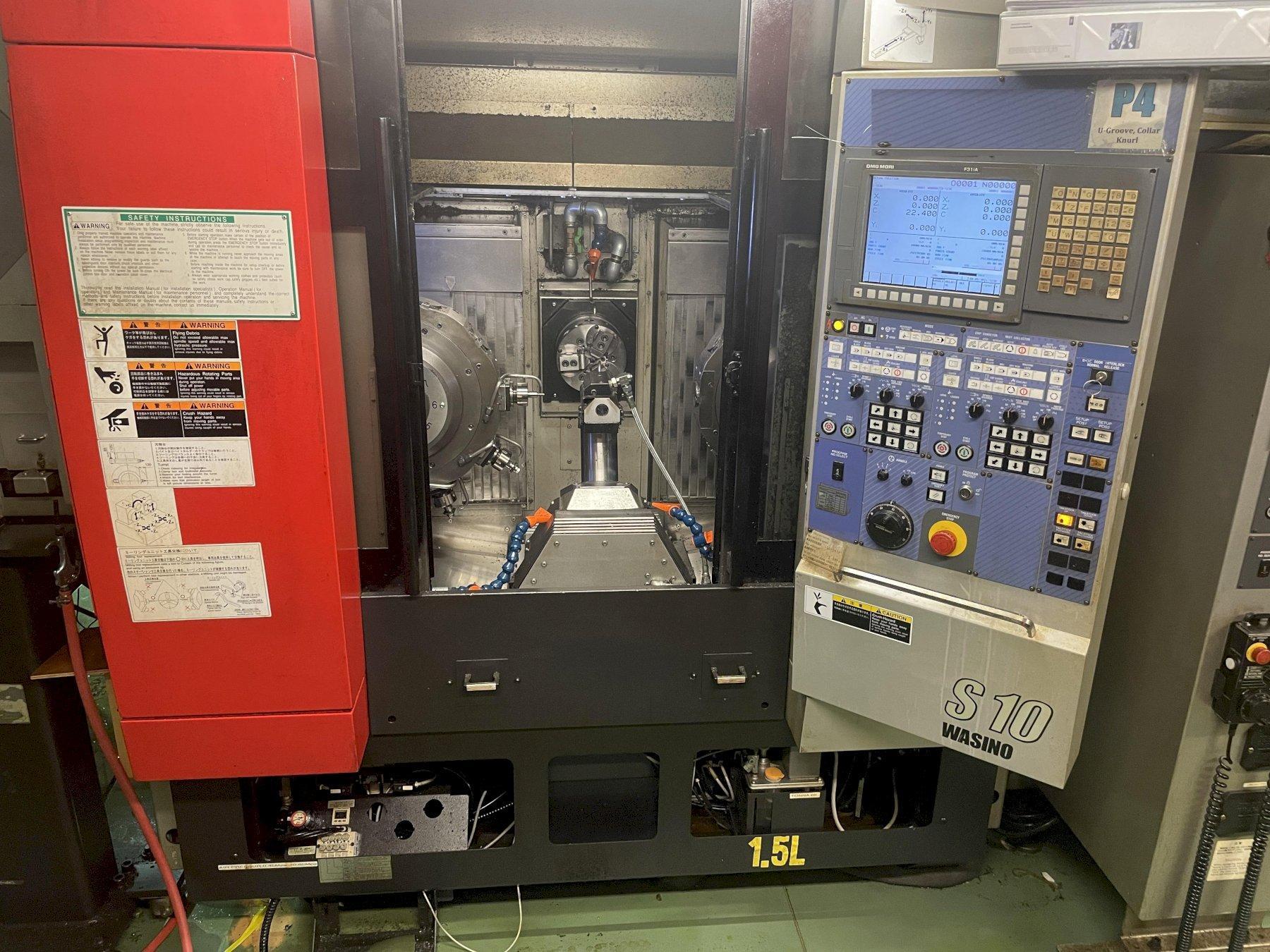

DMG Mori Wasino S-10 Single-Spindle/Dual Turret CNC Lathe For Sale - 2015
Make: AMADA
Model: S-10
Specifications |
|||
|---|---|---|---|
| Year | 2015 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc 31i-Model B | ||
| # Axis | 8 | ||
| Swing | 12.2 inches | ||
| Turning Diameter | 10.24 inches | ||
| Center Distance | 10.63 inches | ||
| Chuck Size | 6 inches | ||
| X Axis Travel | 5.91 inches | ||
| X2 Travel | 5.91 inches | ||
| Z Axis Travel | 13.39 inches | ||
| Z2 Travel | 13.39 inches | ||
| Y Axis Travel | Y Right Side: 4.92" | Y Left Side: 4.92" | ||
| C Axis Index | 0.001° | ||
| Rapid Traverse (X/Z) | 995/1260 ipm | ||
| Spindle Speed | 5,000 rpm | ||
| Main Motor | 20 hp | ||
| Tailstock | yes | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 6 hp | ||
| Sub Spindle | no | ||
| Turret Capacity | (2) 10 Station Turrets | ||
| Dimensions | 67" x 79" x 80" | ||
| Weight | 12500 pounds | ||
|
Equipped With
- Fanuc 31i-Model B CNC Control

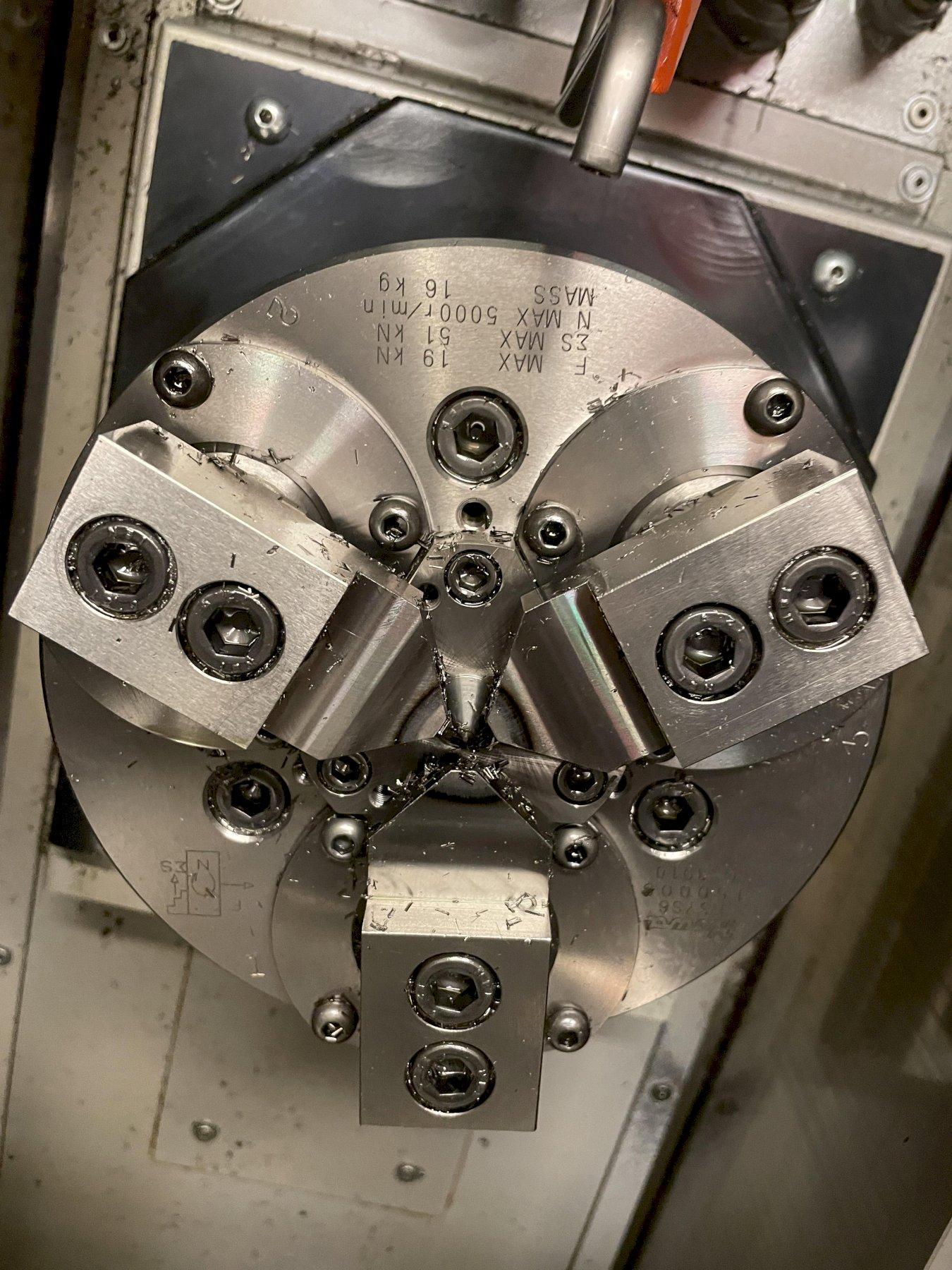

- Gantry Loader System - Howa H3YS6 Sealed Compensating Power Chuck - Remote Handwheel - (2) 10 Station Turrets - Y Axis Both Turrets - Live Tooling Both Turrets - Tailstock |
|||
