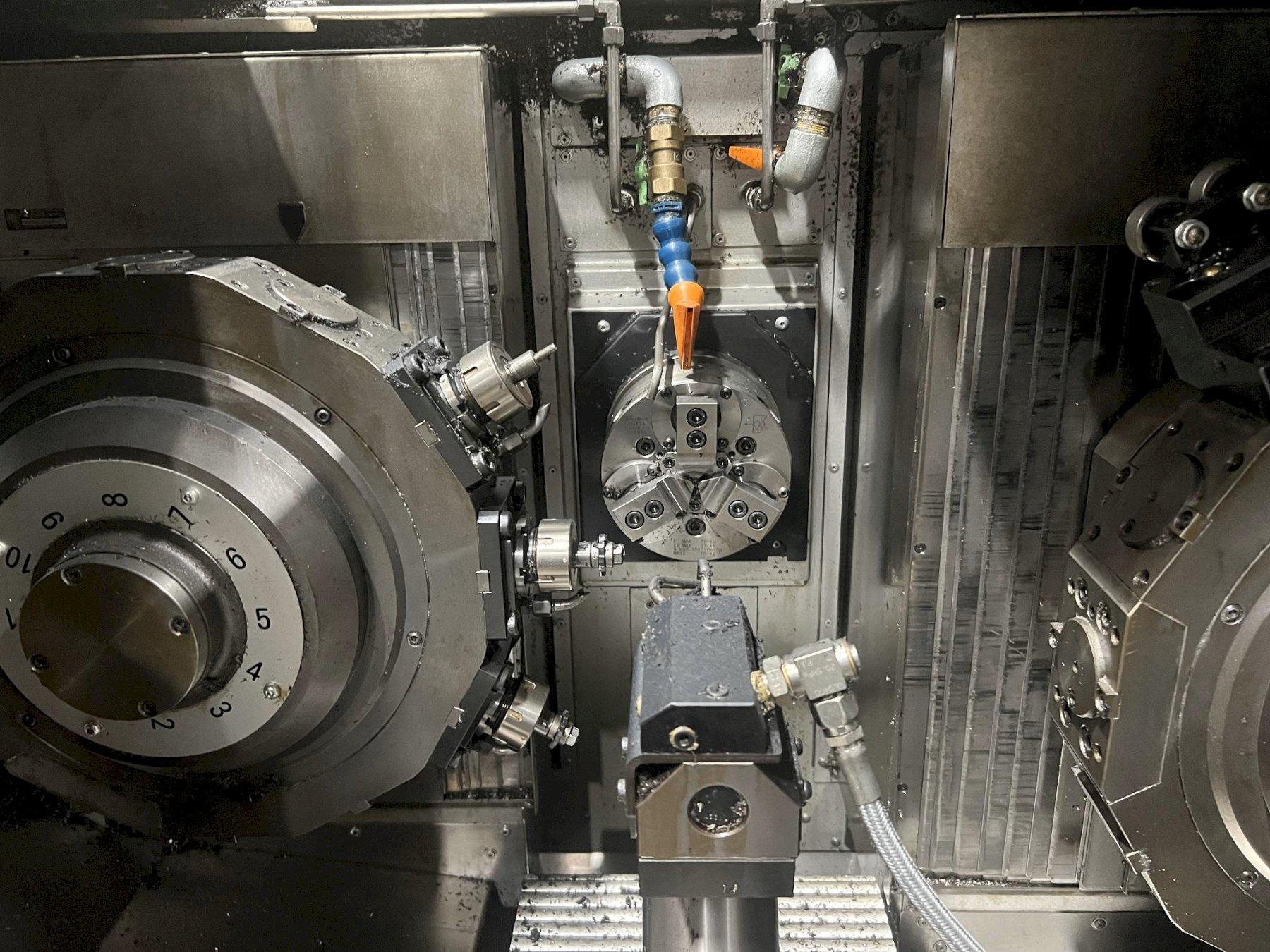

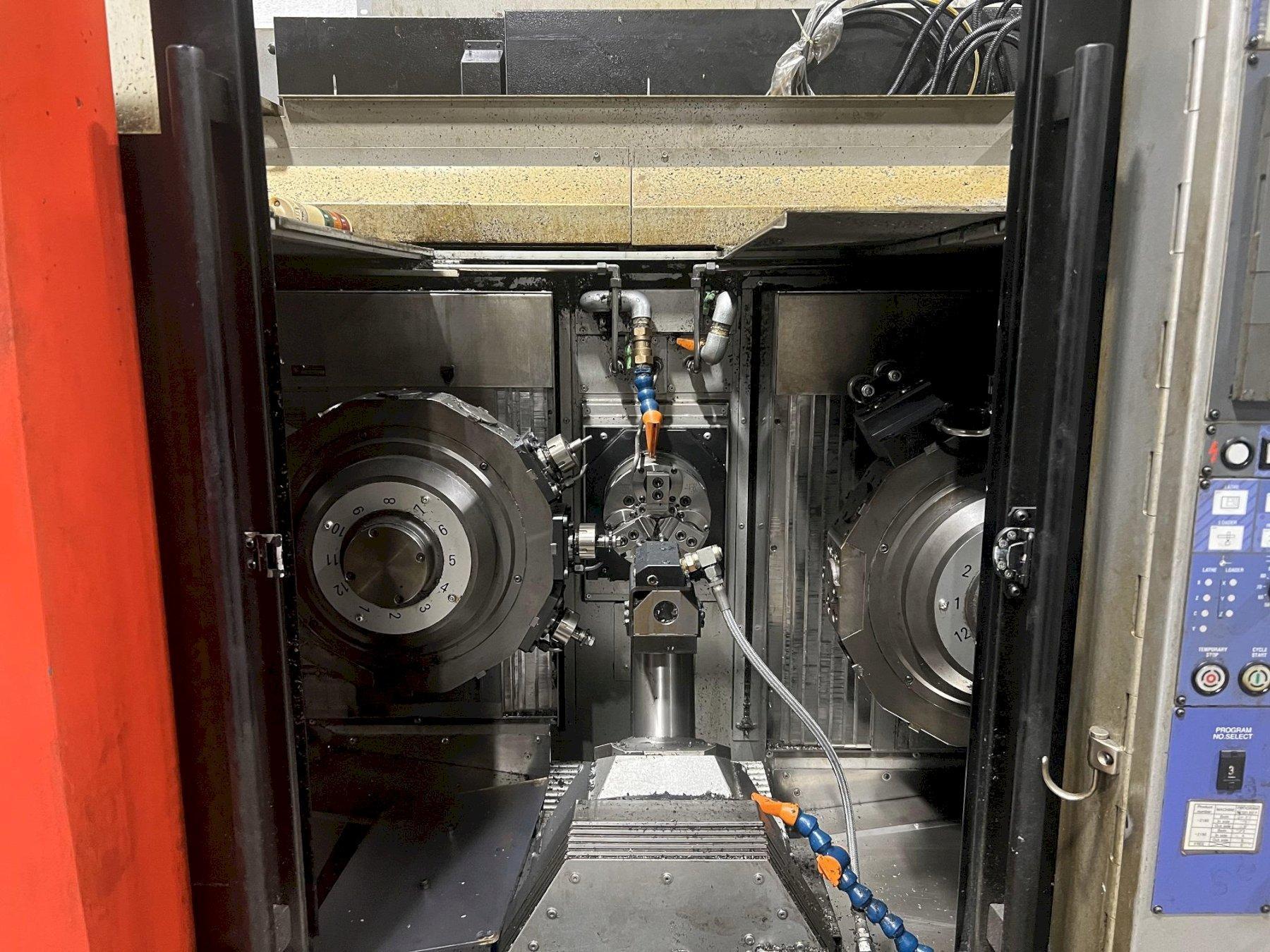

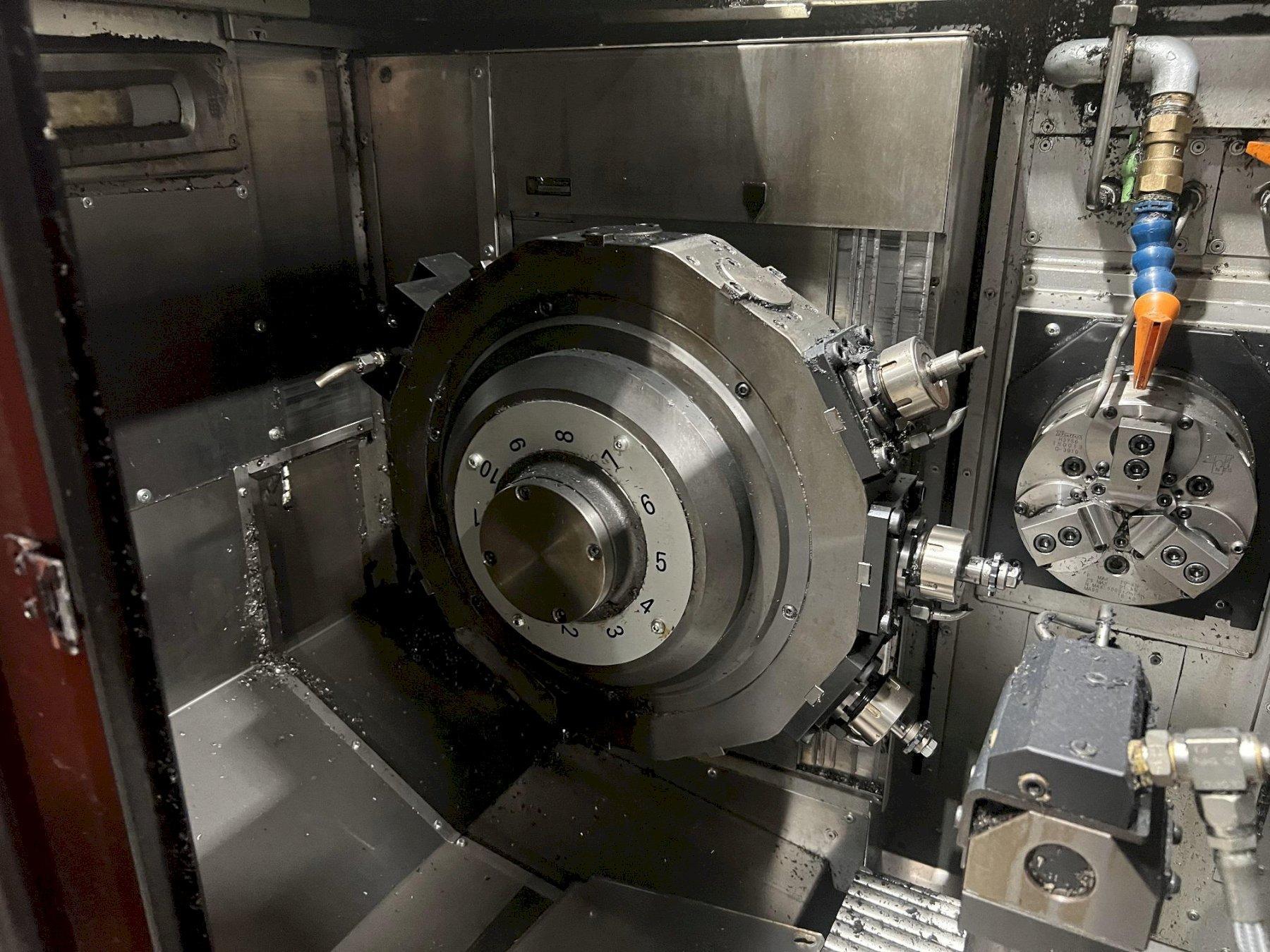

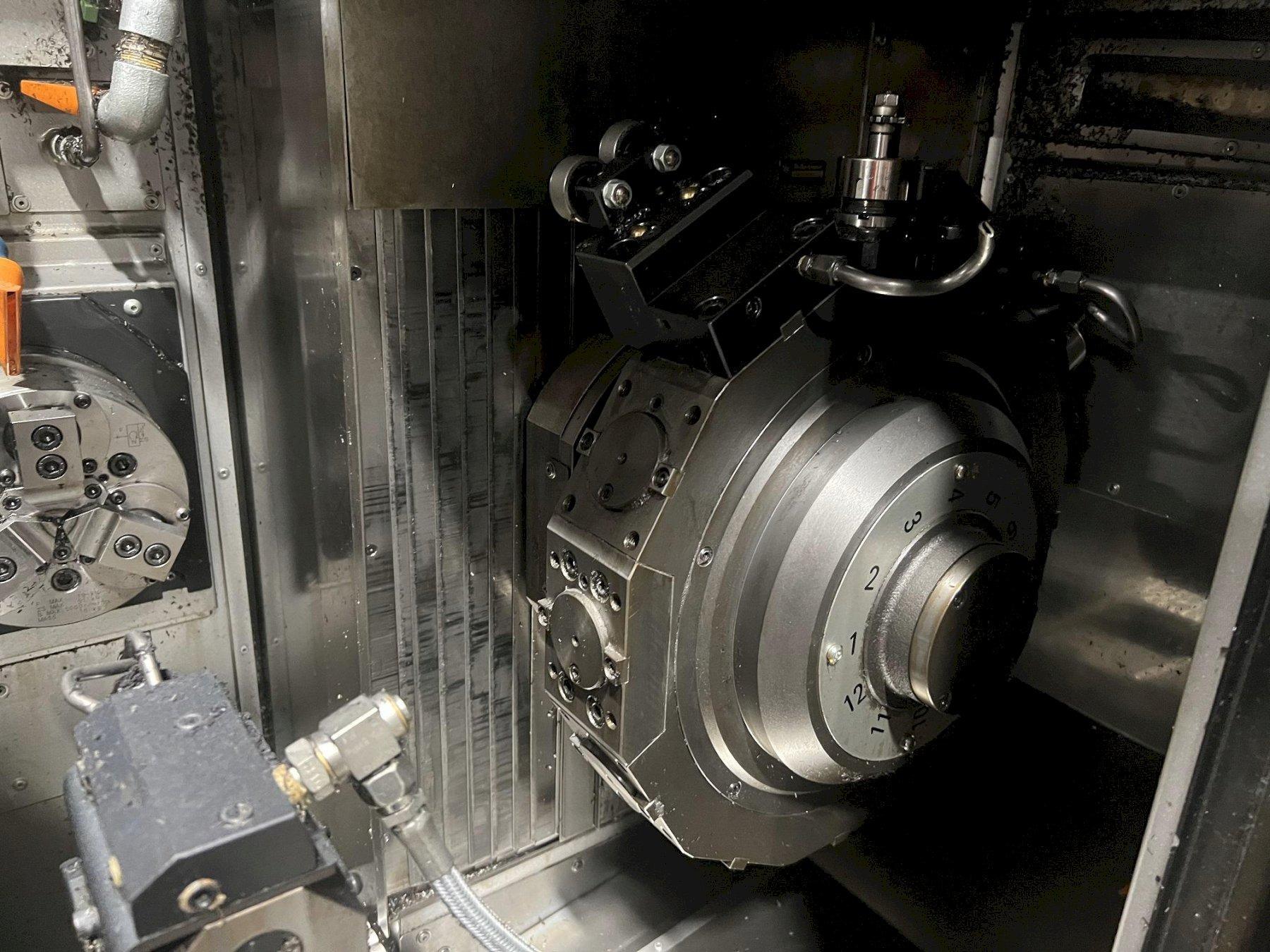

DMG Mori Wasino S-10 Single-Spindle/Dual Turret CNC Lathe For Sale - 2015
Make: WASINO
Model: S-10
Specifications |
|||
|---|---|---|---|
| Year | 2015 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc 31i-Model B | ||
| # Axis | 8 | ||
| Swing | 12.2 inches | ||
| Turning Diameter | 10.24 inches | ||
| Center Distance | 10.63 inches | ||
| Chuck Size | 6 inches | ||
| X Axis Travel | 5.91 inches | ||
| X2 Travel | 5.91 inches | ||
| Z Axis Travel | 13.39 inches | ||
| Z2 Travel | 13.39 inches | ||
| Y Axis Travel | Y Right Side: 4.92" | Y Left Side: 4.92" | ||
| C Axis Index | 0.001° | ||
| Rapid Traverse (X/Z) | 995/1260 ipm | ||
| Spindle Speed | 5,000 rpm | ||
| Main Motor | 20 hp | ||
| Tailstock | yes | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 6 hp | ||
| Sub Spindle | no | ||
| Turret Capacity | (2) 12 Station Turrets | ||
| Dimensions | 67" x 79" x 80" | ||
| Weight | 12500 pounds | ||
|
Equipped With
- Fanuc 31i-Model B CNC Control
- Gantry Loader System - Howa H3YS6 Sealed Compensating Power Chuck - Remote Handwheel - (2) 12 Station Turrets - Y Axis Both Turrets - Live Tooling Both Turrets |
|||
Be sure to call us if you're buying or selling any used CNC Lathes, Verticals, or Horizontal machinery. We have hundreds of used CNC machines at our disposal and we also specialize in used Mazak CNC machines and other brands; for example Haas, Okuma, Mori Seiki, Nakamura, Kitamura, Doosan, and Makino.
If you need any further assistance, please give us a call at 586-755-1234 to speak with one of our experienced salesman. Since we are a full used CNC dealership service, we can provide financing options, rigging, and trucking quotes. Our in-house service department reconditions and repairs all types of used CNC machinery. We can provide top dollars for your used CNC equipment or outright purchase.
Our experienced team knows the questions to ask in order to find the machine that’s right for your application. Call us today to review your requirements and get the right machine for your job. With over 75 years combined-experience and a full-service support staff we know what questions to ask to ensure you get the right equipment for the job.
