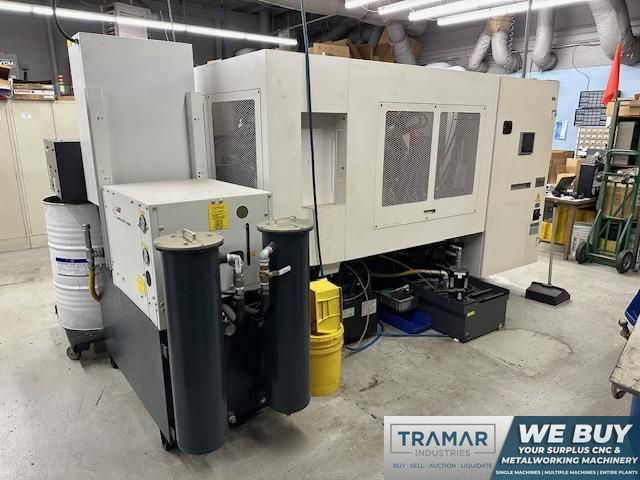

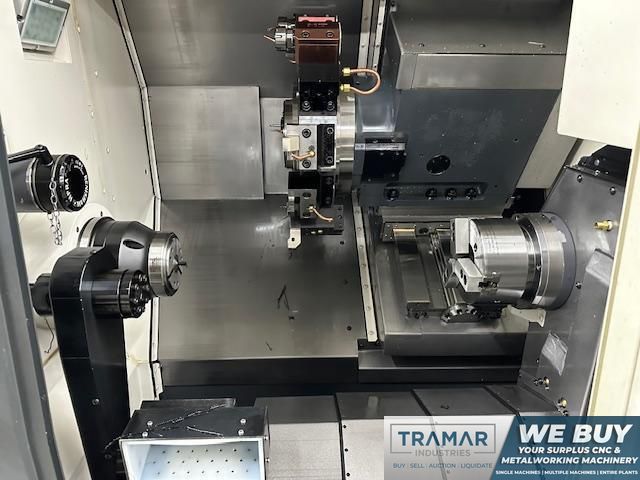

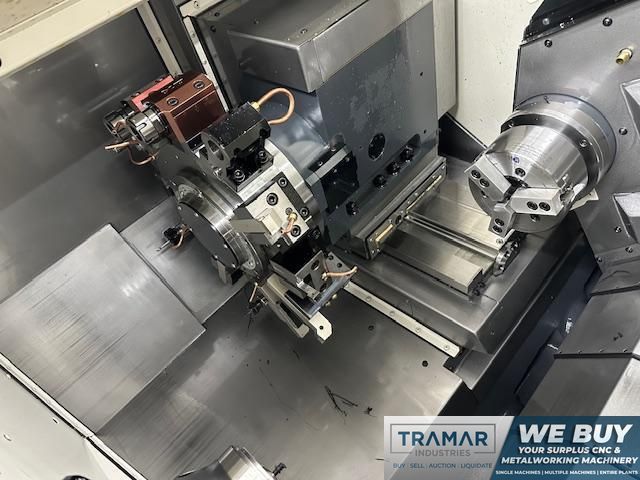

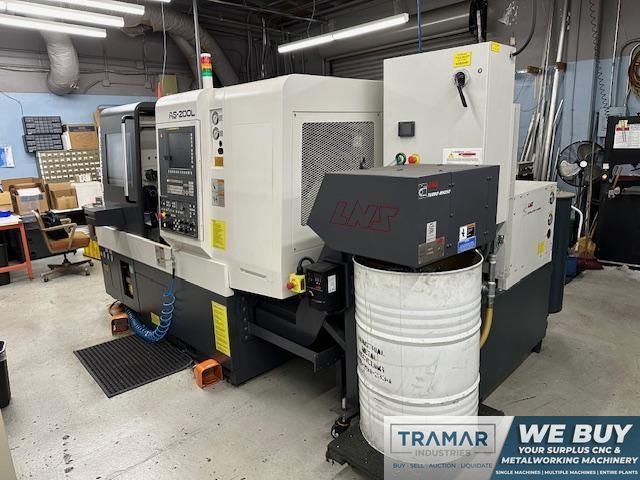

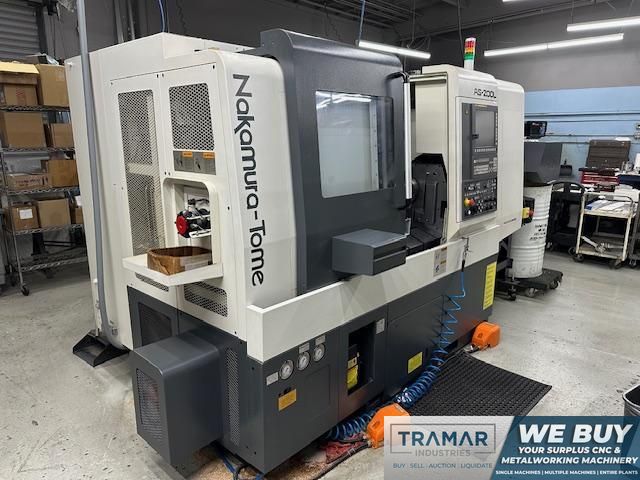

2022 Nakamura Tome AS-200LMYS Used CNC Lathe For Sale
Make: NAKAMURA-TOME
Model: AS-200L
Specifications |
|||
|---|---|---|---|
| Year | 2022 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc | ||
| # Axis | 6 | ||
| Swing | 15.75 inches | ||
| Turning Diameter | 13.38 inches | ||
| Center Distance | 22.44 inches | ||
| Chuck Size | 8 inches | ||
| Bar Capacity | 2.55 inches | ||
| X Axis Travel | 8.95 inches | ||
| Y Axis Travel | 1.61 inches | ||
| Z Axis Travel | 23.03 inches | ||
| C Axis Index | 0.001° | ||
| Rapid Traverse (X/Y/Z) | 944/1417/236 ipm | ||
| Spindle Nose | A2-6 | ||
| Spindle Speed | 4,500 rpm | ||
| Main Motor | 20 hp | ||
| Tailstock | no | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 7.5 hp | ||
| Sub Spindle | no | ||
| Sub Spindle Chuck | 6 inches | ||
| Turret Capacity | 12 | ||
| Machine Dimensions | 64" x 65" x 73" | ||
| Machine Weight | 12000 pounds | ||
|
Equipped With

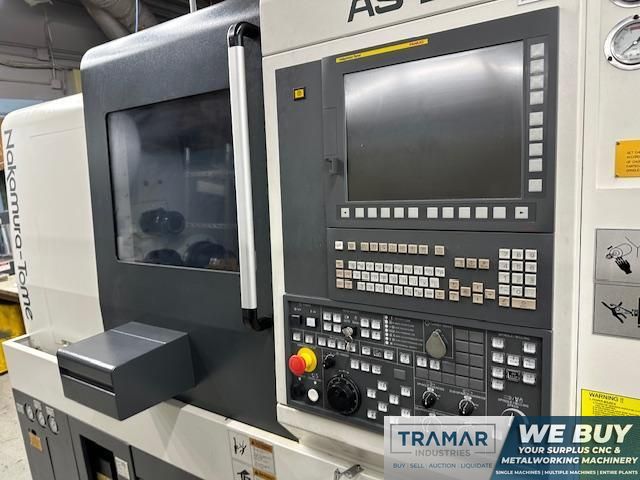

- Nakamura-Tome Fanuc CNC Control
- LNS Chip Conveyor - Y Axis - Live Tooling - Sub Spindle - Chip Blaster (Hi-Pressure Coolant Through Turret - Collet Chuck (Main Spindle) - 3 Jaw Chuck (Sub Spindle) - Parts Catcher - Tool Presetter |
|||
