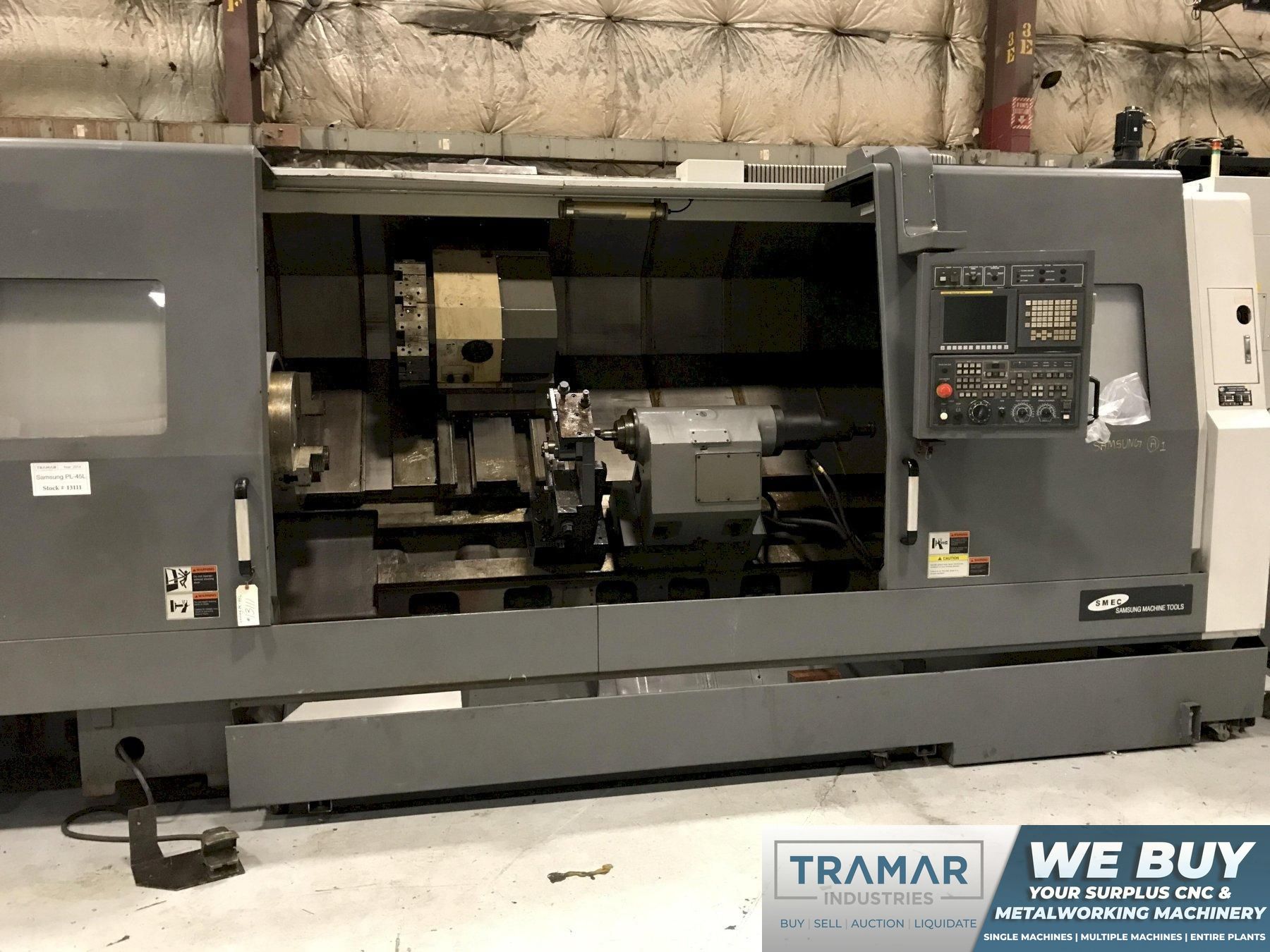

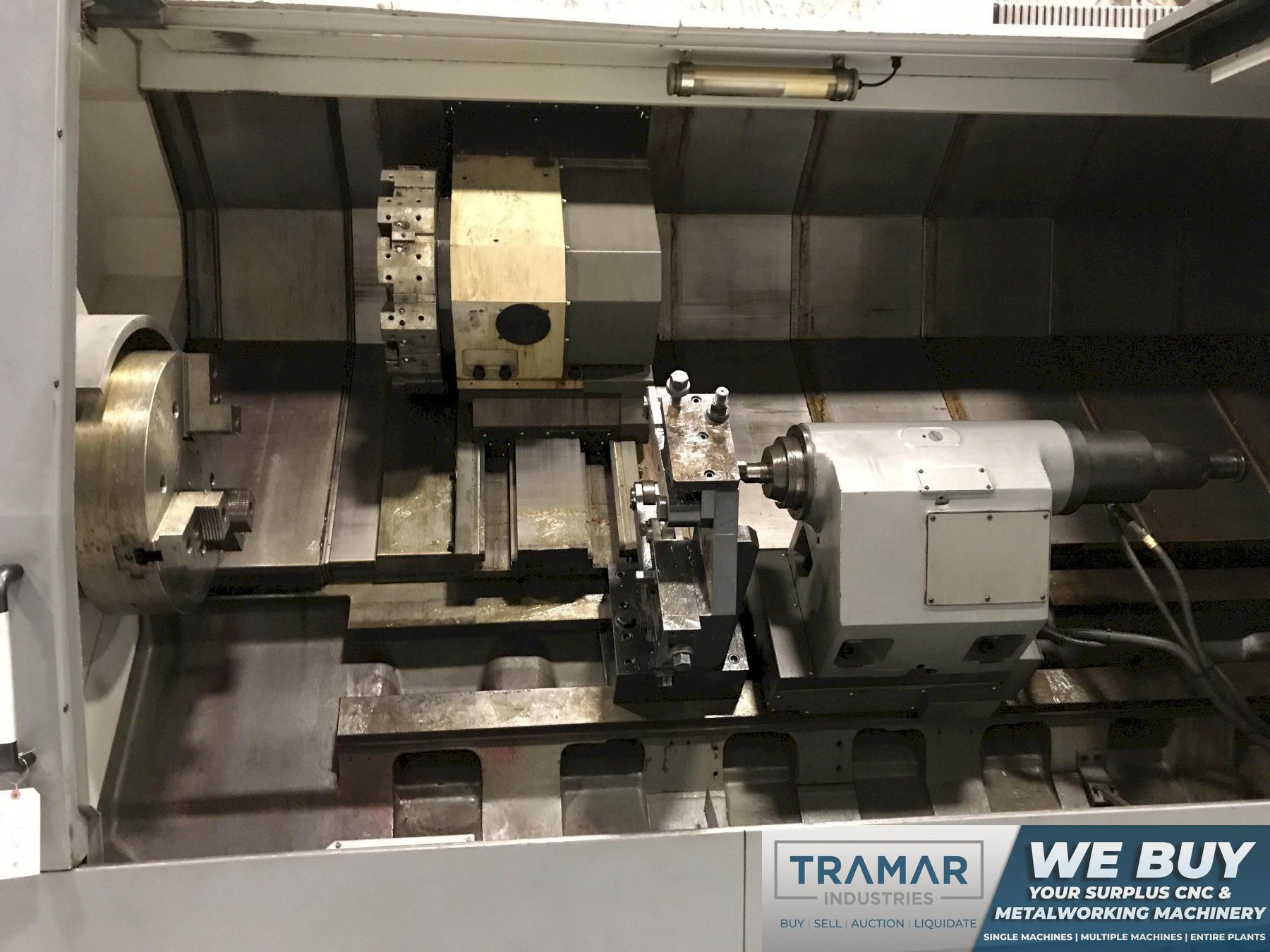

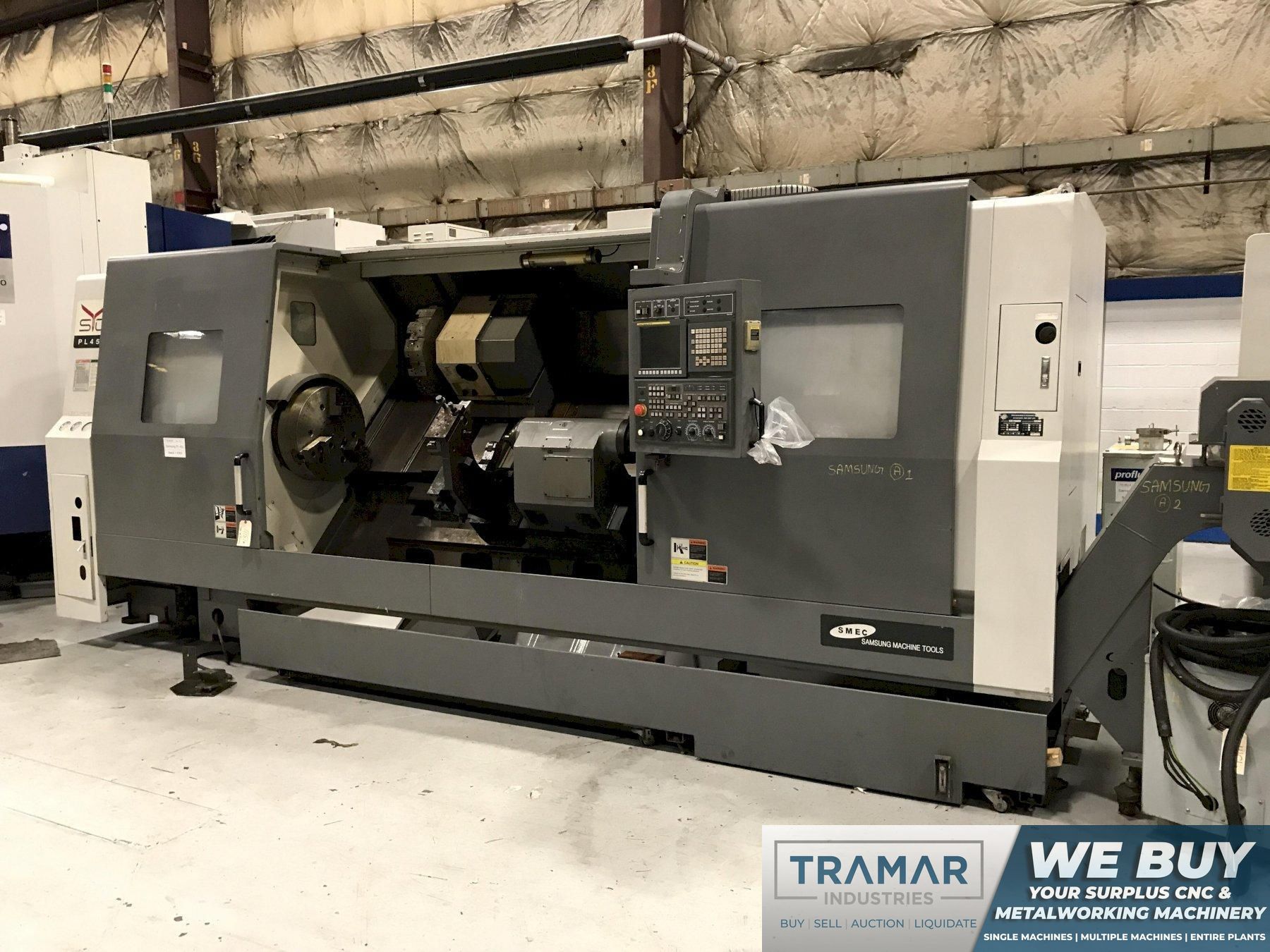

Contact Us2014 SAMSUNG PL-45L - CNC Horizontal Lathe
Make: SAMSUNG
Model: PL-45L
Specifications |
|||
|---|---|---|---|
| Year | 2014 | ||
| CNC Control | yes | ||

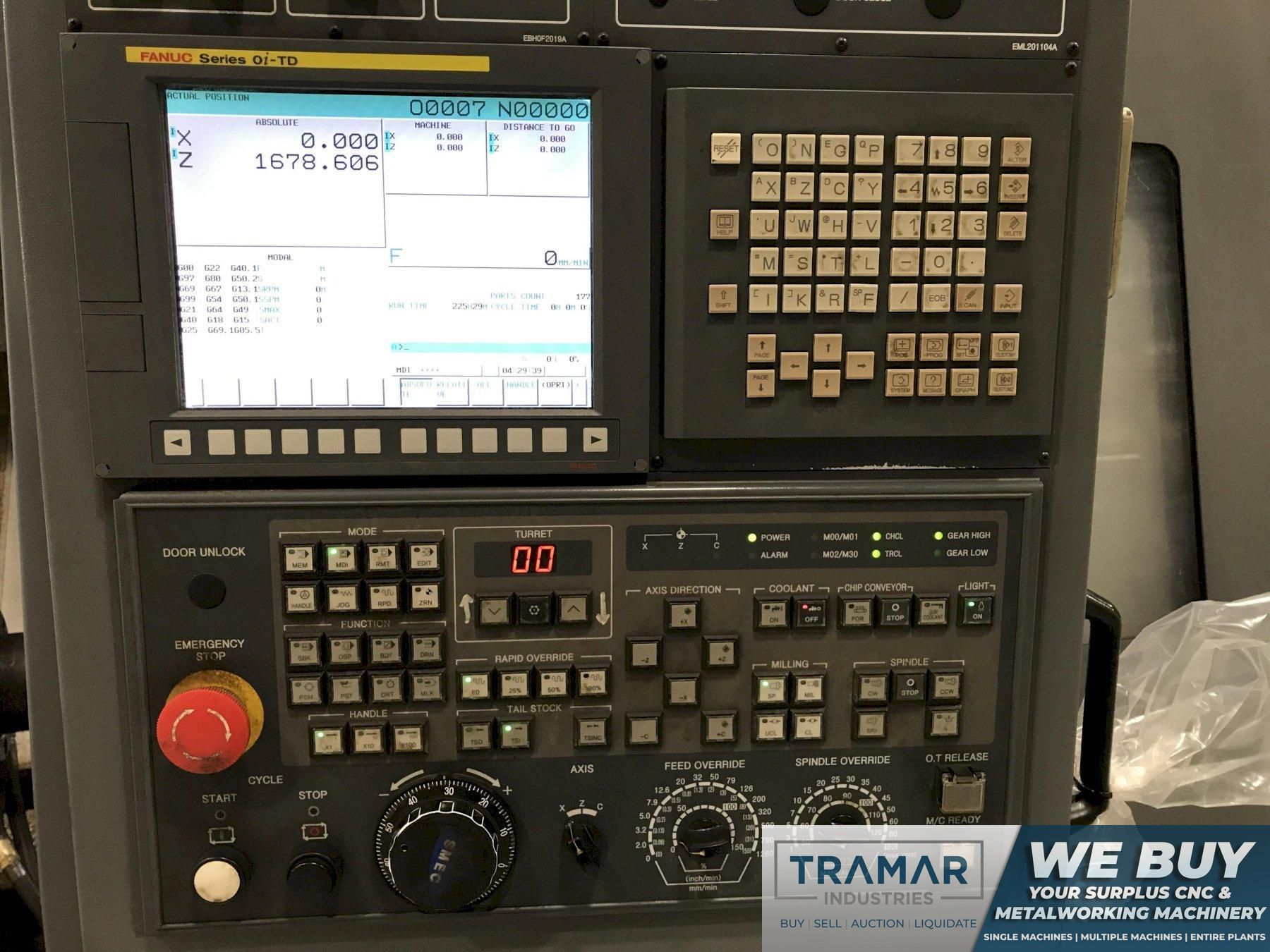

| CNC Control | Fanuc 0i-TD | ||
| # Axis | 2 | ||
| Swing | 30.5 inches | ||
| Turning Diameter | 27.16 inches | ||
| Center Distance | 88.7 inches | ||
| Chuck Size | 21 inches | ||
| Bar Capacity | 5 inches | ||
| X Axis Travel | 12.9 inches | ||
| Z Axis Travel | 91.7 inches | ||
| Rapid Traverse (X/Z) | 787/708 ipm | ||
| Spindle Nose | A2-11 | ||
| Spindle Speed (RPM) | 1800 | ||
| Main Motor | 50 hp | ||
| Live Tooling | no | ||
| Tailstock | yes | ||
| Y Axis | yes | ||
| Sub Spindle | no | ||
| Turret Capacity | 12 | ||
| Machine Dimensions | 218" x 85" | ||
| Machine Weight | 29000 pounds | ||
|
Equipped With
- Fanuc 0i-TD Control - Chip Conveyor - Coolant Tank - 21" Hydraulic 3 Jaw Chuck (Model HCH-21) - Manual Steady Rest - Programmable Hydraulic Tailstock - Misc. Tooling Available - Available Manuals - Samsung Machine Tools |
|||
