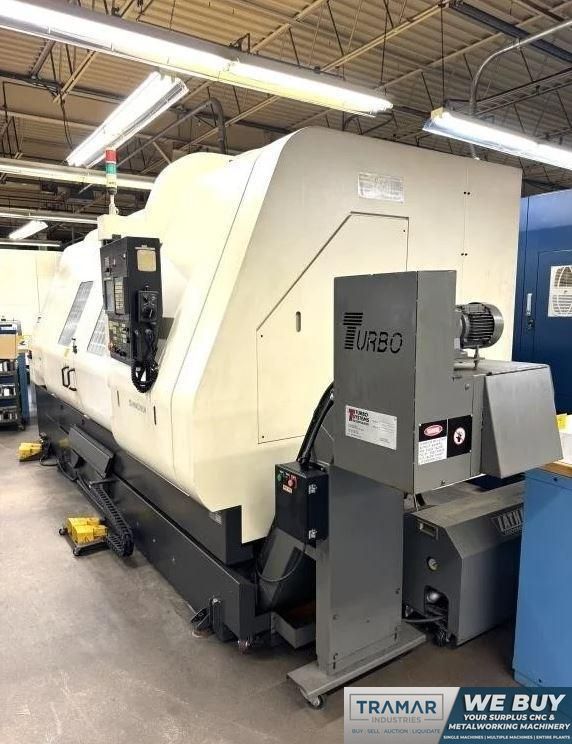

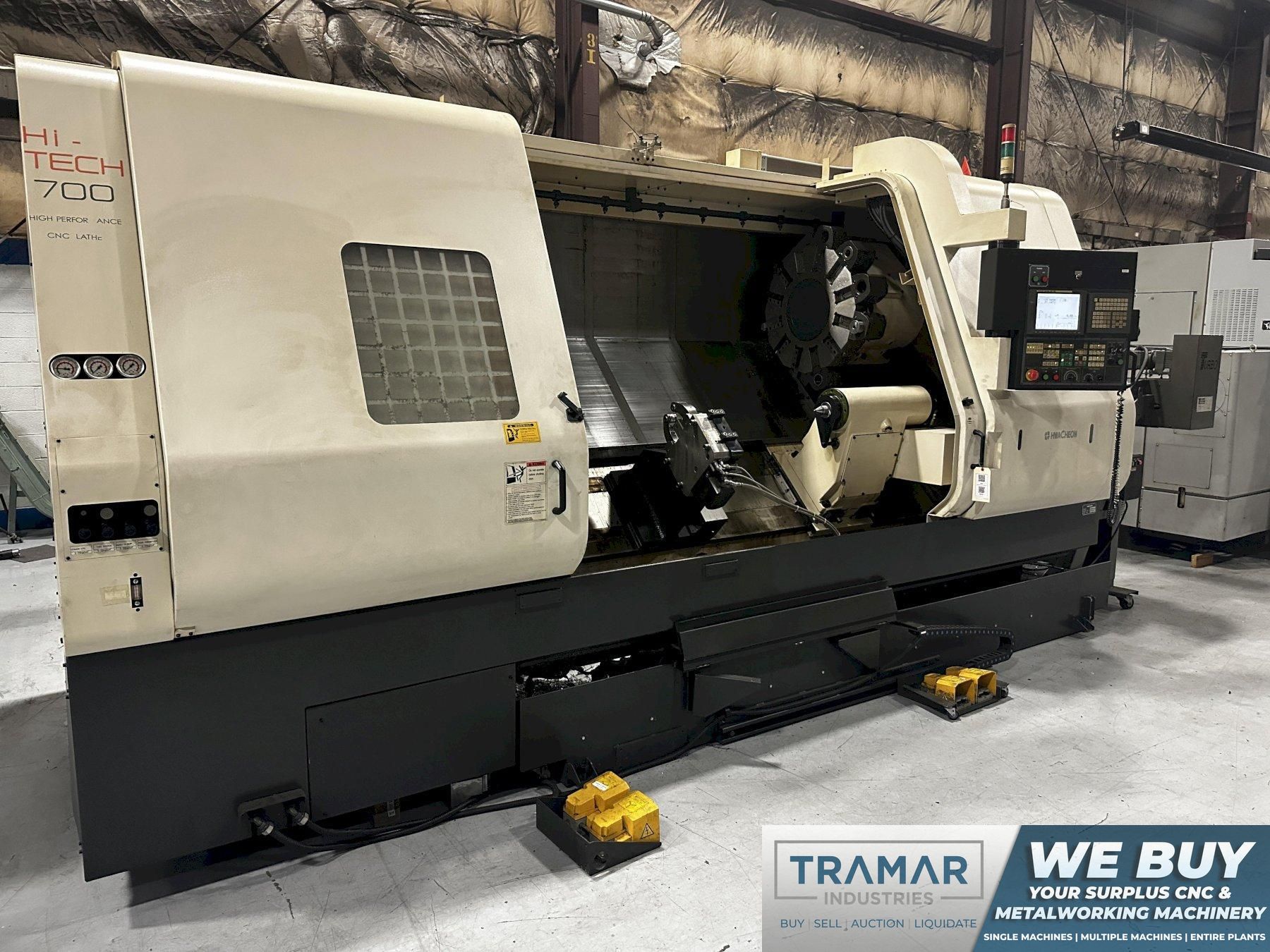

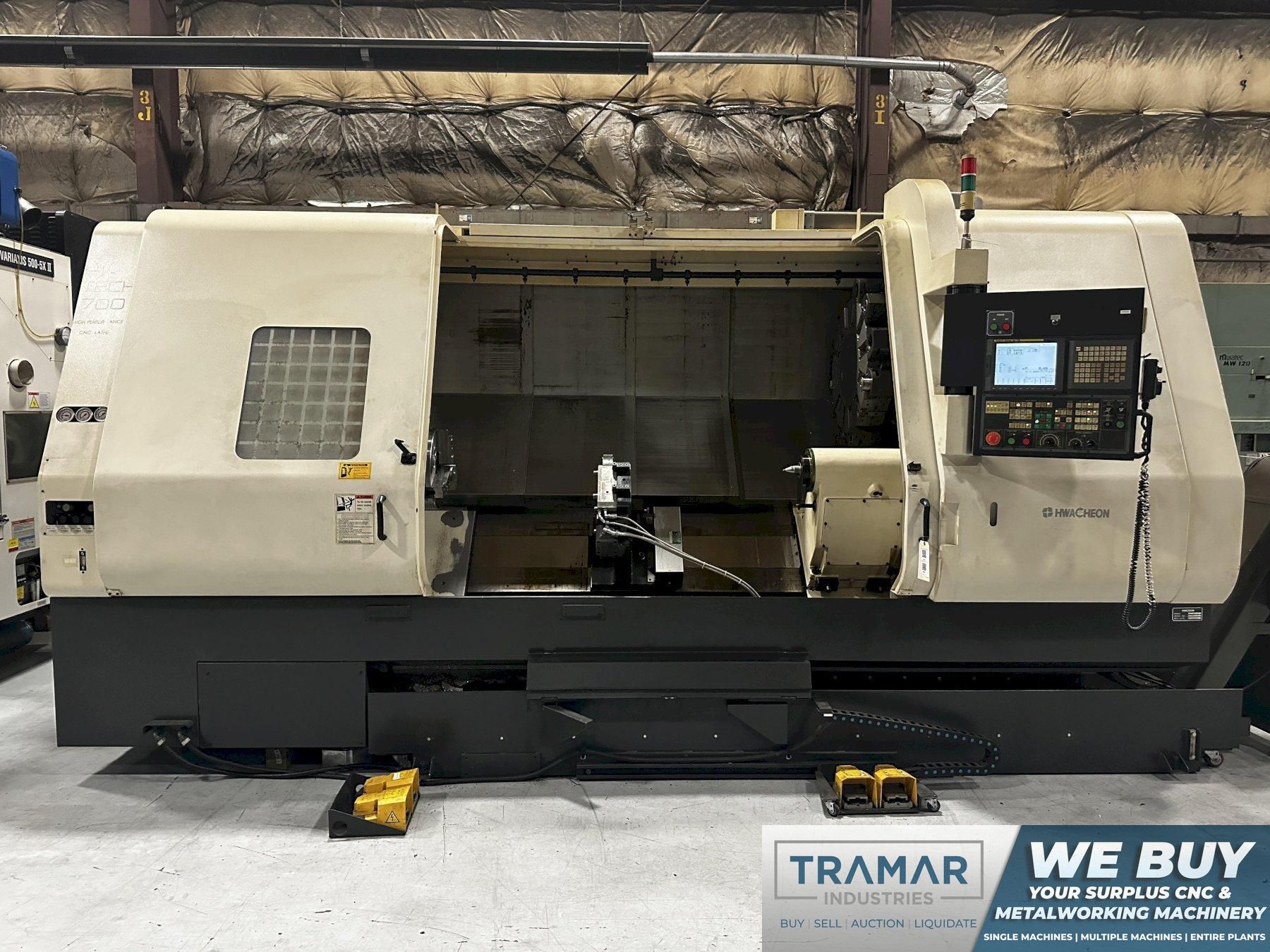

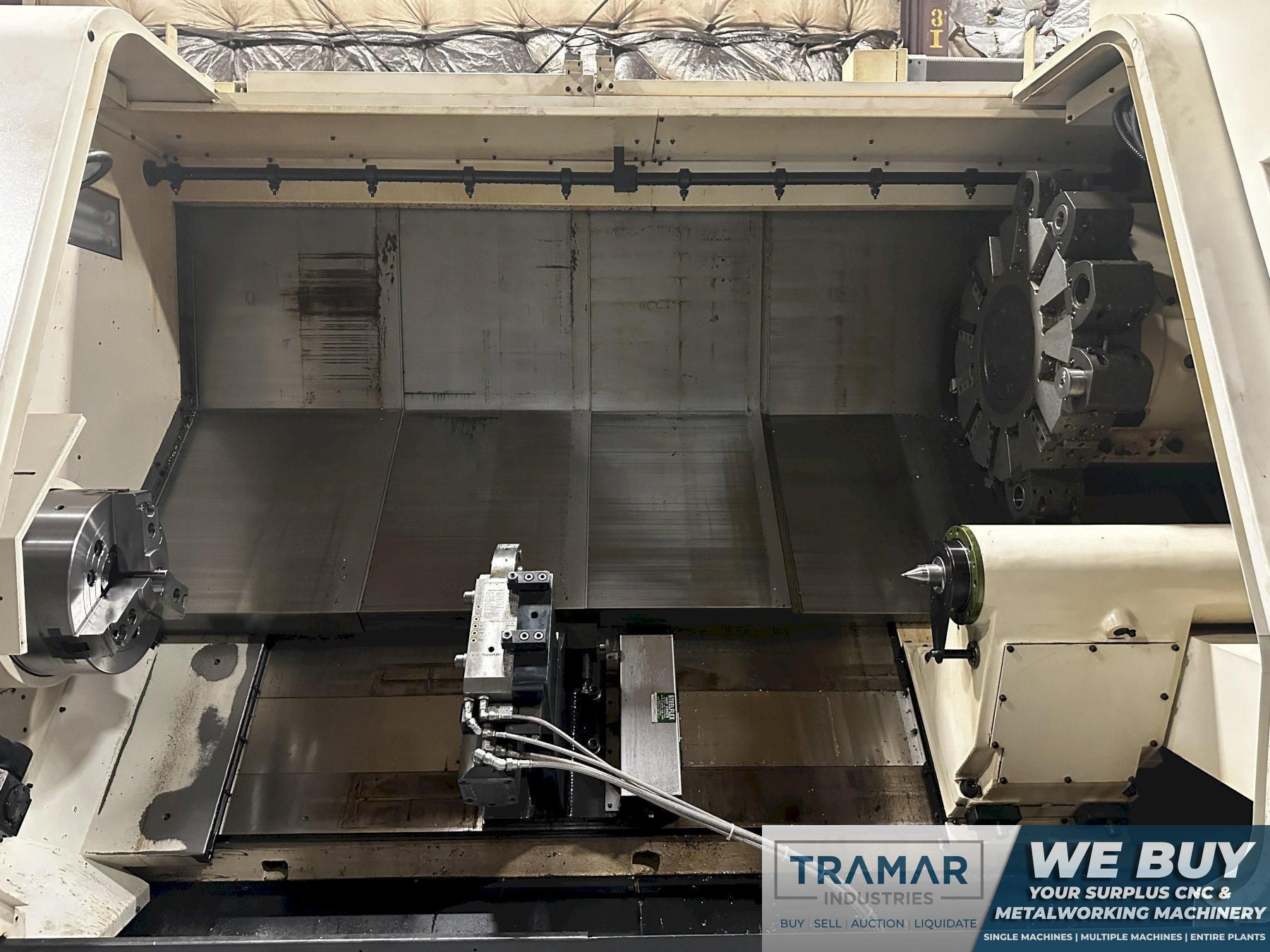

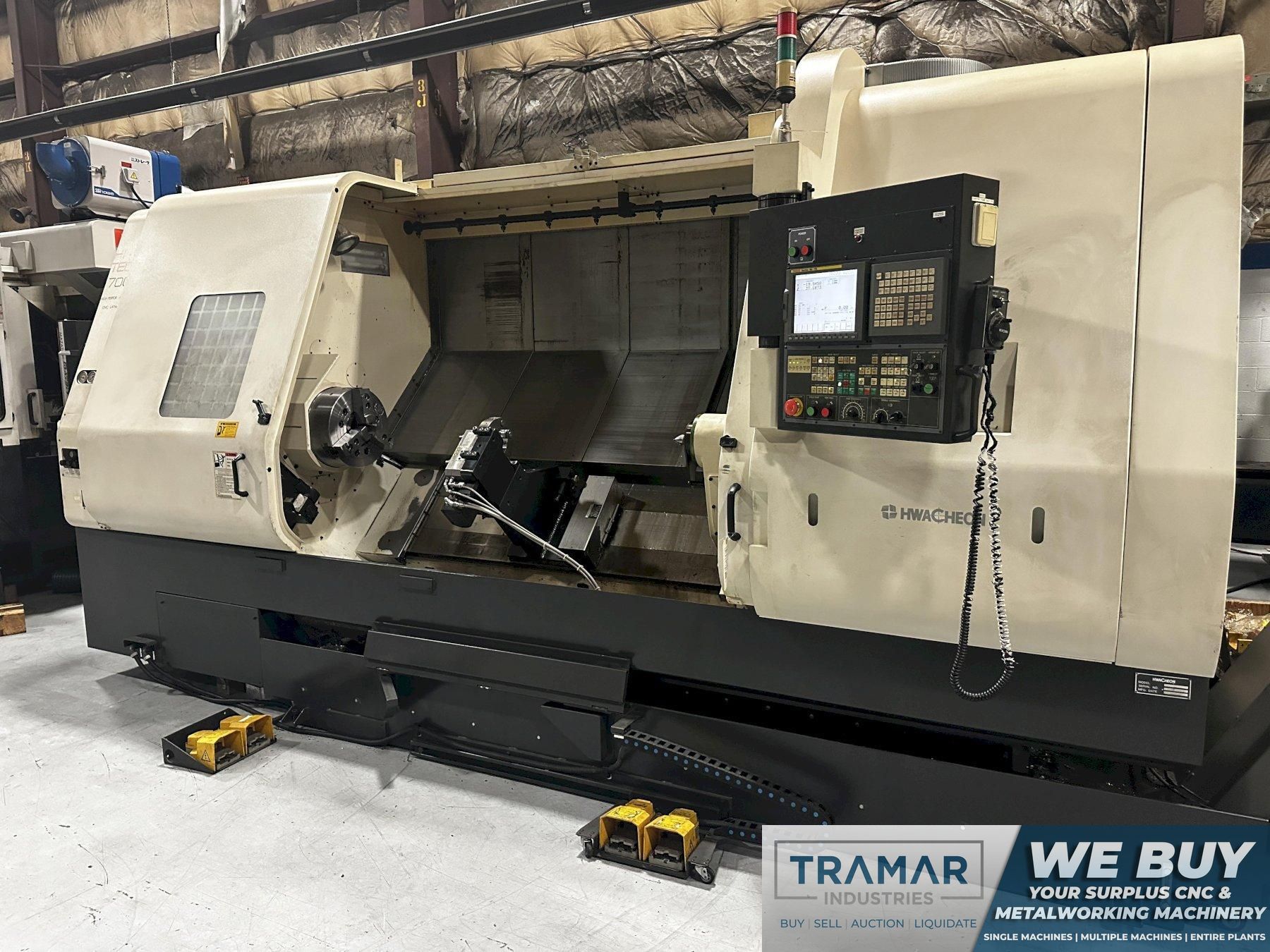

2006 Hwacheon Hi-Tech 700 CNC Lathe For Sale
Make: HWACHEON
Model: Hi-Tech 700
Specifications |
|||
|---|---|---|---|
| Year | 2006 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc 18i-TB | ||
| # Axis | 2 | ||
| Swing | 35.43 | ||
| Turning Diameter | 27.56 | ||
| Center Distance | 78.7 | ||

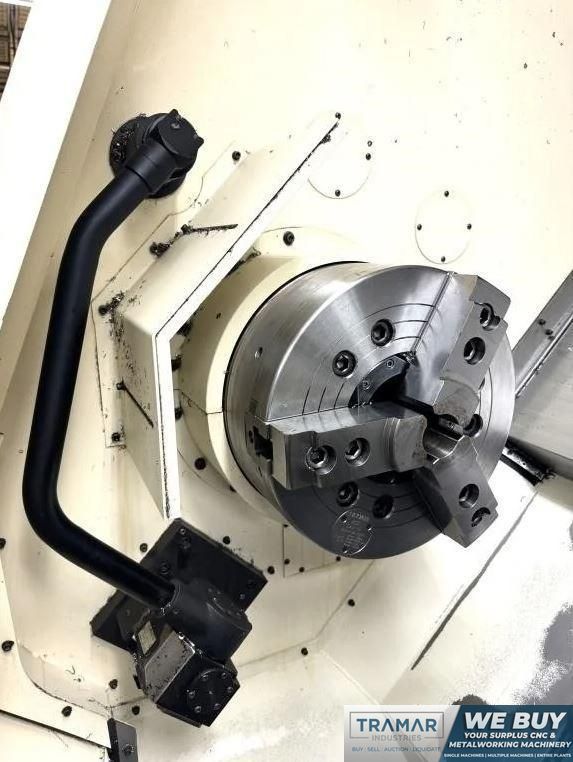

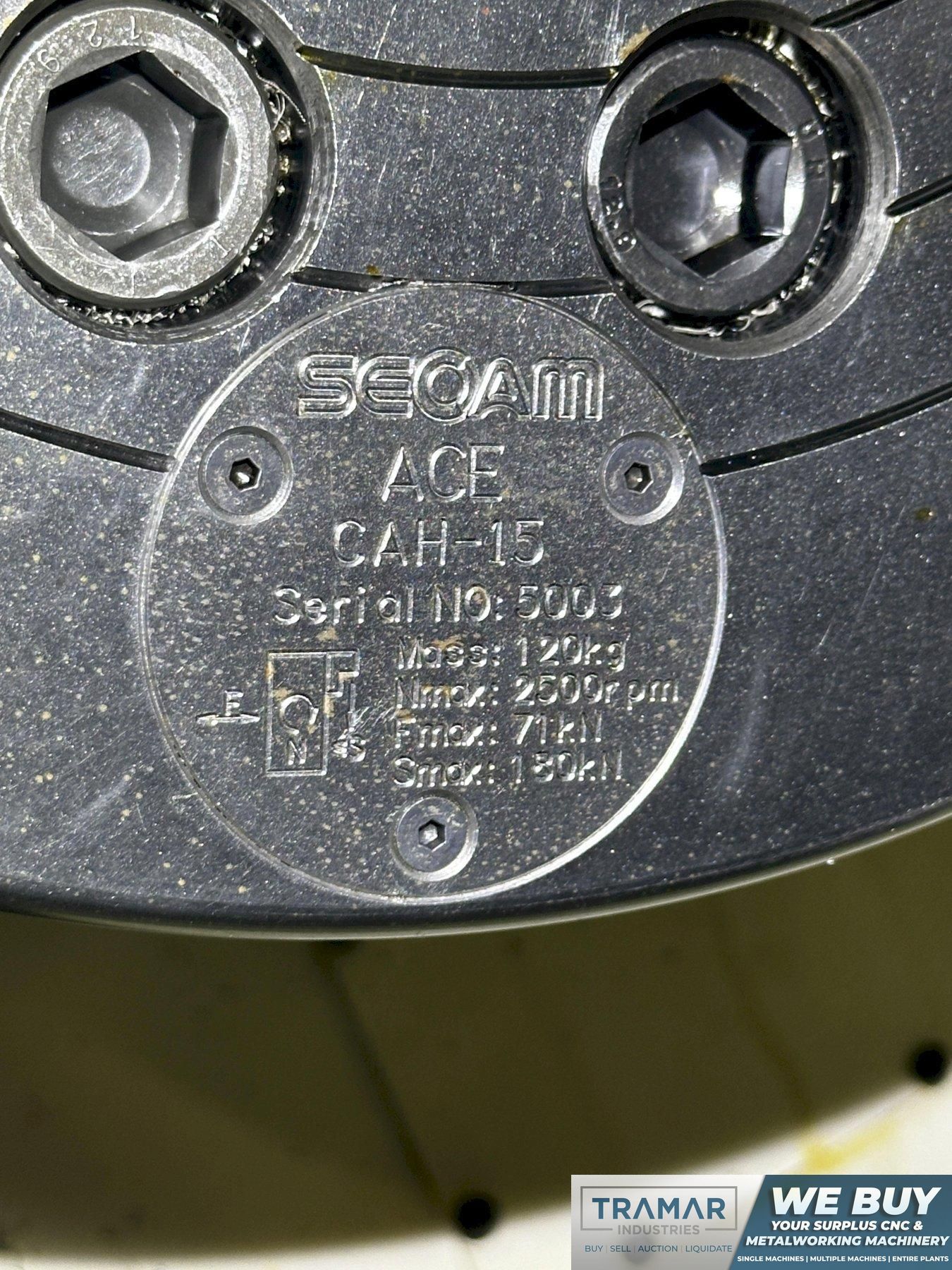

| Chuck Size | 15" | ||
| Bar Capacity | 4.56" | ||
| X-Axis Travel | 15.16" | ||
| Z-Axis Travel | 81.5" | ||
| Spindle Nose | A2-11 | ||
| Spindle Speed | 1,800 rpm | ||
| Main Motor | 40 hp | ||

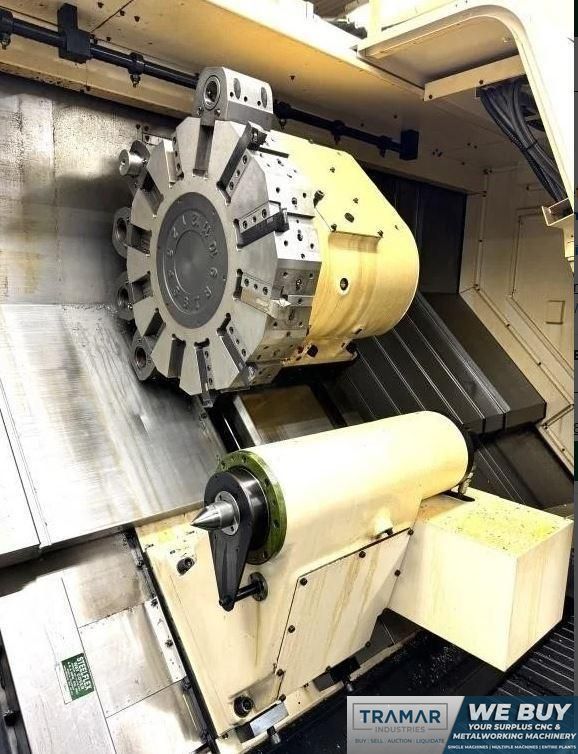

| Turret Capacity | 12 | ||
| Tailstock (Yes/No) | yes | ||
| Live Tooling | no | ||
| Y Axis (Yes / No) | no | ||
| Sub Spindle | yes | ||
| Machine Dimensions | 199" x 92" x 100" | ||
| Machine Weight | 33100 pounds | ||
|
Equipped With

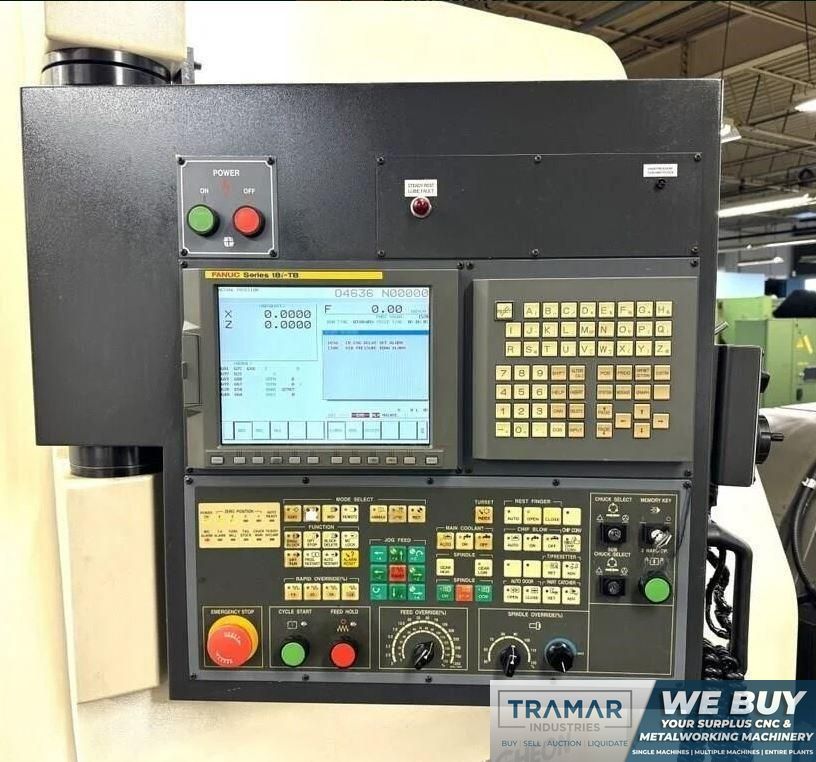

- Fanuc 18i-TB CNC Control

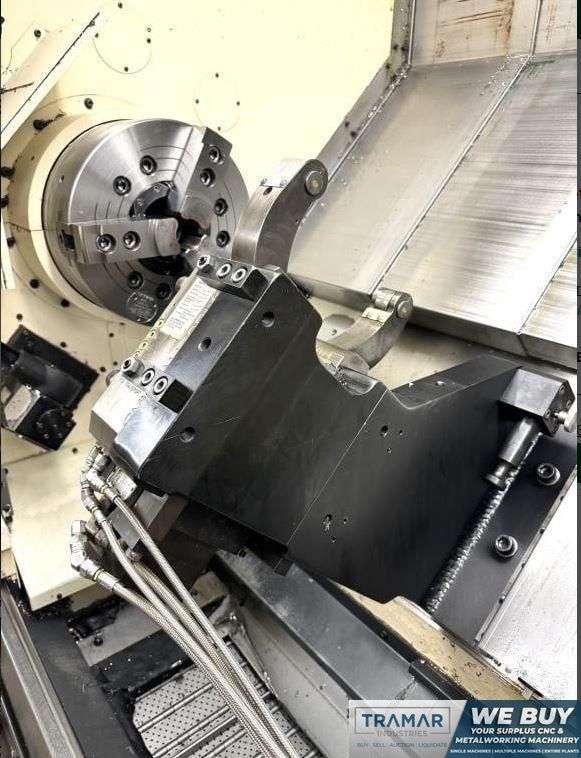

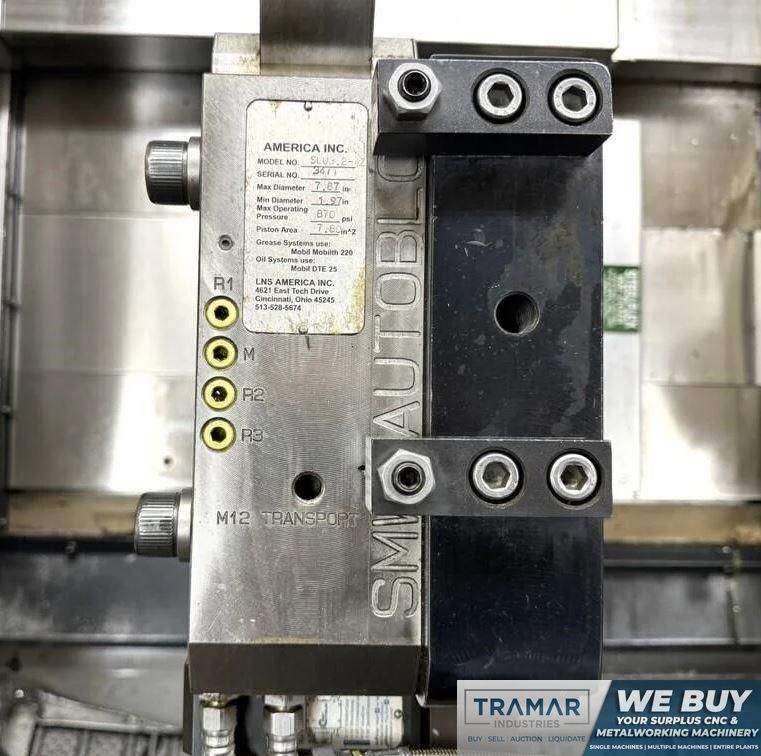

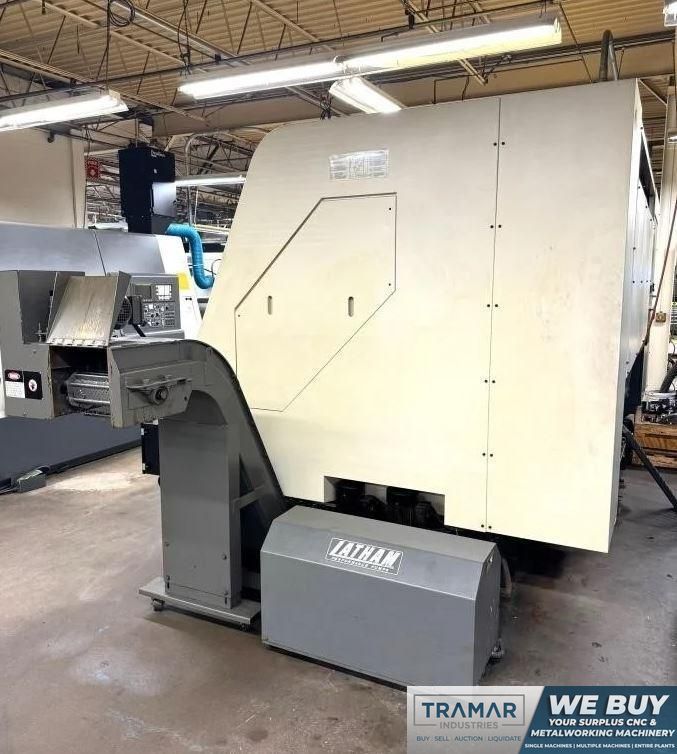

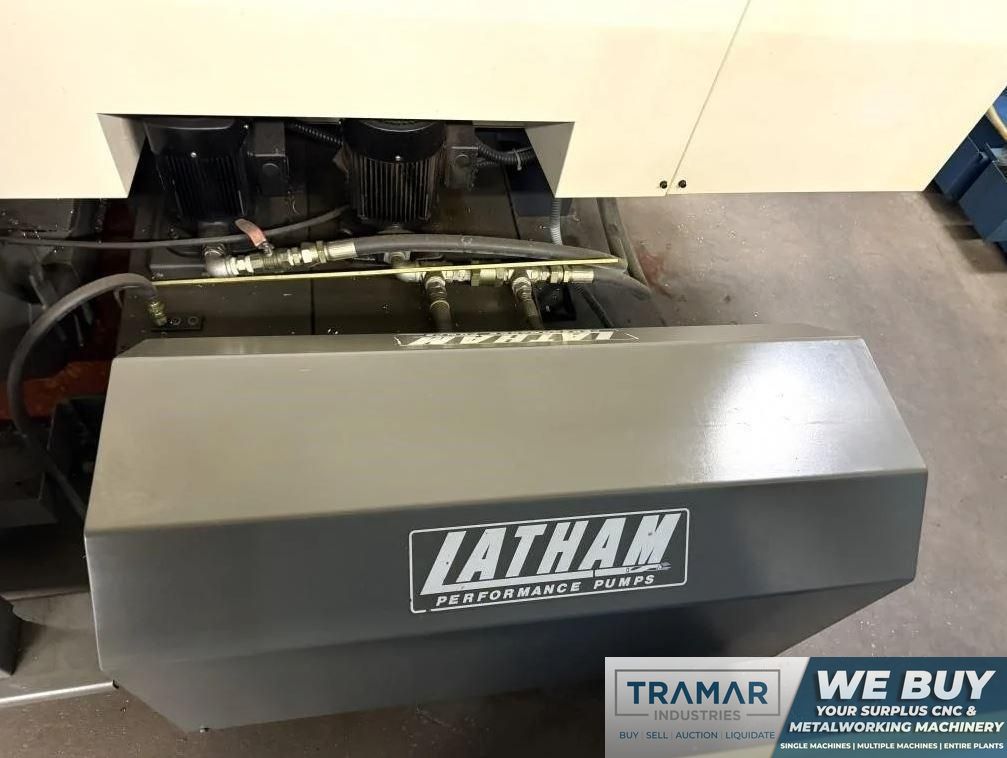

- Chip Conveyor - Coolant Tank & Pump - LNS Autoblok Hydraulic Steady Rest (1.97" - 7.88") - Hi-Pressure Thru Turret Coolant - Marposs Tool Presetter - Programmable Tailstock - 2 Stage Gearbox - Spindle Chiller |
|||
